Precautions For TCM, A/T Assembly And Control Valve Assembly Replacement
>>
EEPROM Erasing Patterns
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
EEPROM Erasing Patterns

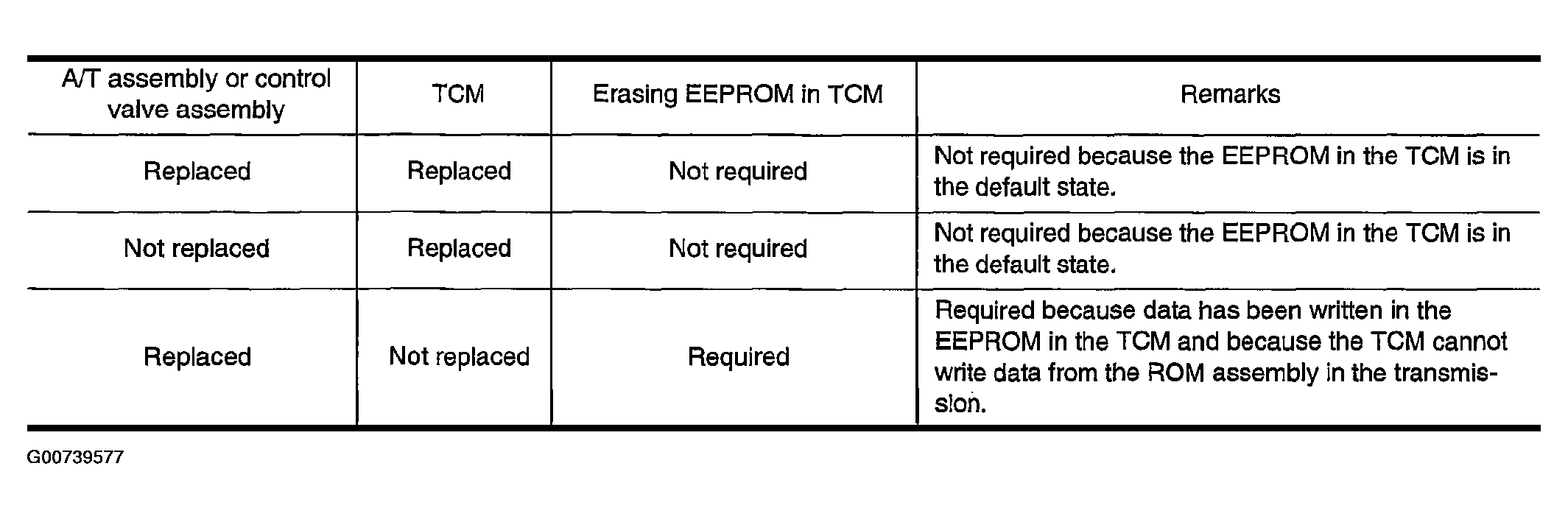

Fig 1: EEPROM Erasing Patterns
Courtesy of NISSAN MOTOR CO., U.S.A.
