Control Valve Assembly: Components

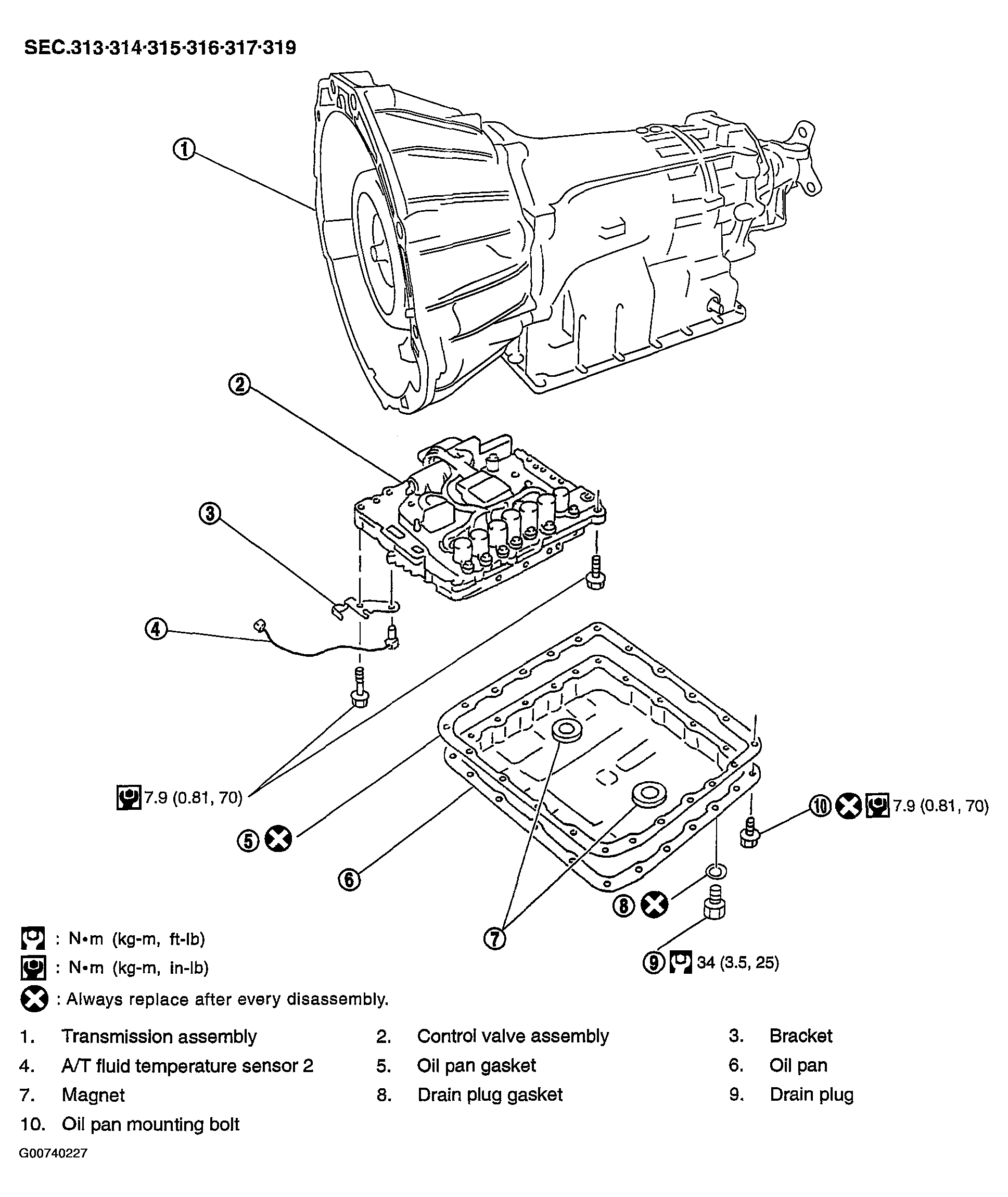

Fig 1: Component View

G00740227

Courtesy of NISSAN MOTOR CO., U.S.A.
