DTC P1815: Manual Mode Switch
>>
Consult-II Reference Value In Data Monitor Mode
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Consult-II Reference Value In Data Monitor Mode

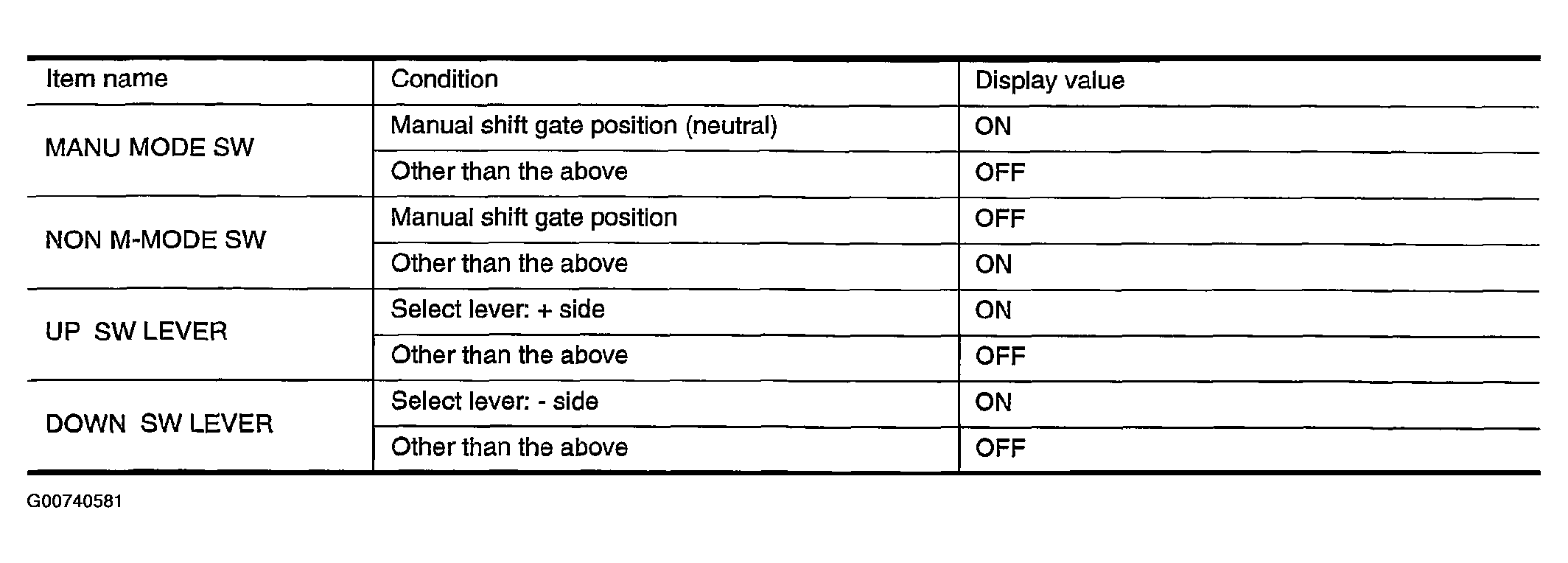

Fig 1: CONSULT-II Reference Value In Data Monitor Mode
Courtesy of NISSAN MOTOR CO., U.S.A.
