Hydraulic Line: Components

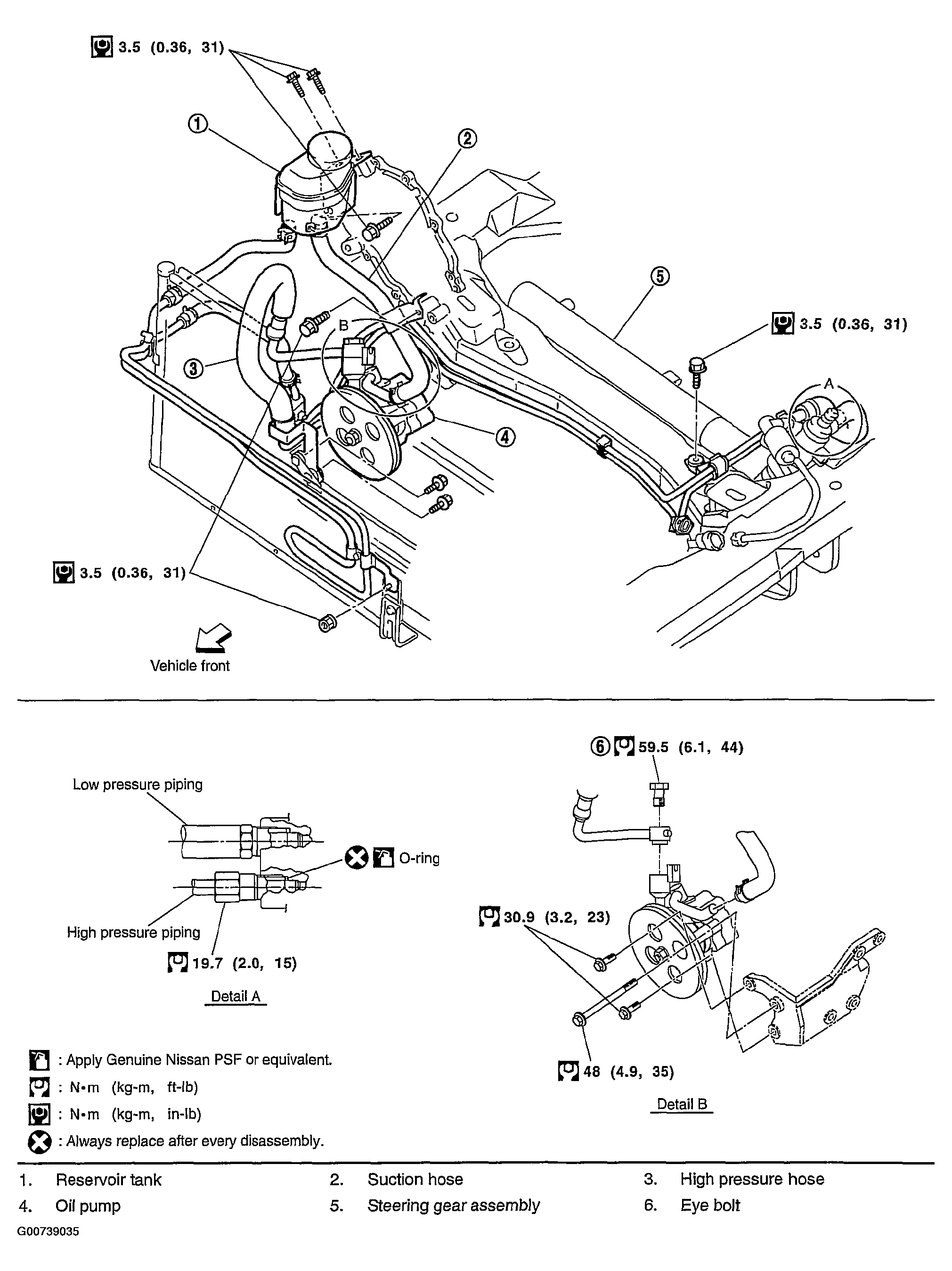

Fig 1: Displaying Hydraulic Line Components

G00739035

Courtesy of NISSAN MOTOR CO., U.S.A.
