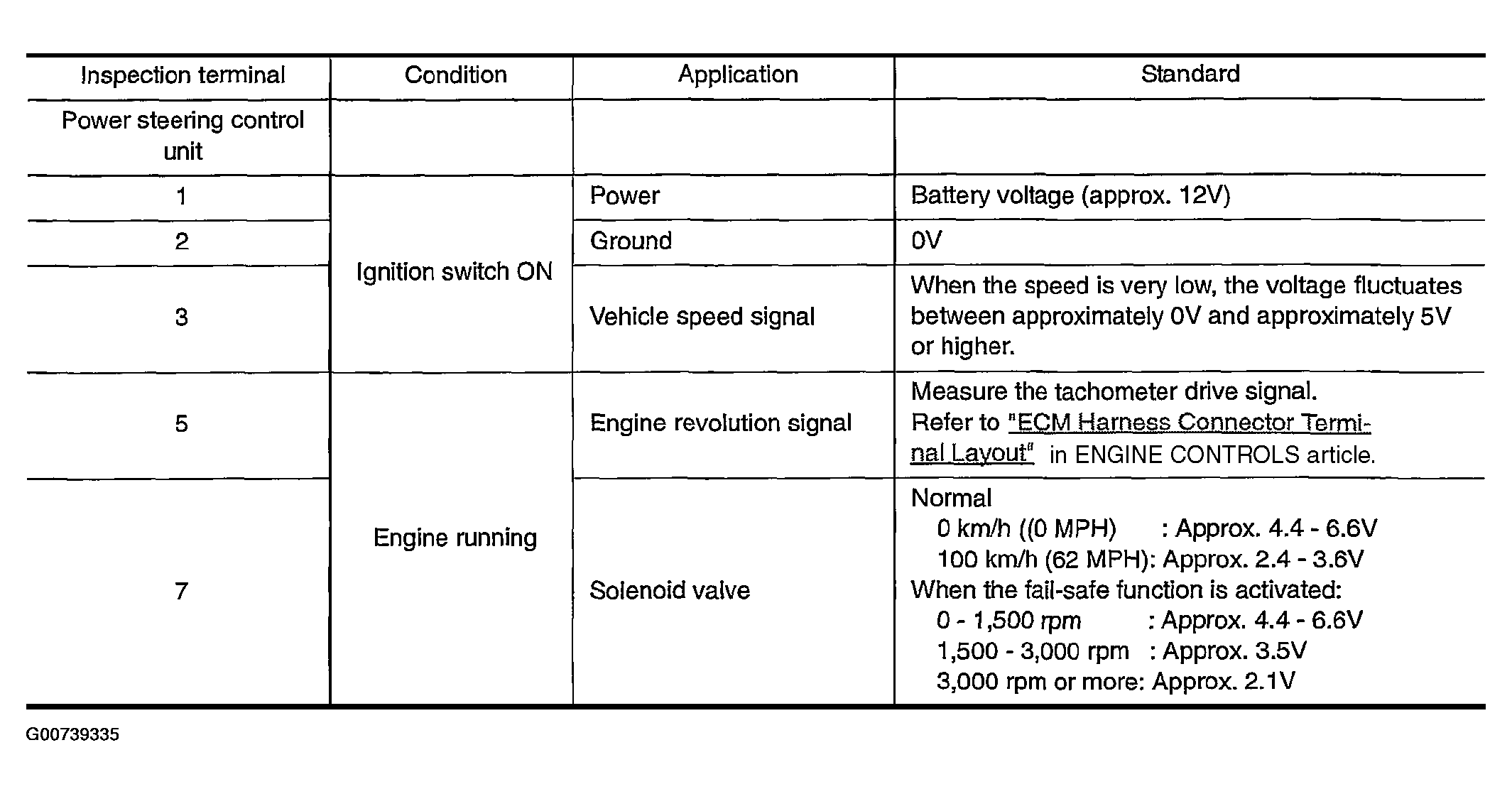

Control Unit Inspection Table
The standard values (voltage), measured with an analog tester in contact with control unit terminal, are shown below:
Courtesy of NISSAN MOTOR CO., U.S.A.
