DTC P0117, P0118: ECT Sensor
>>
Wiring Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
DTC P0117, P0118: ECT Sensor: Wiring Diagram

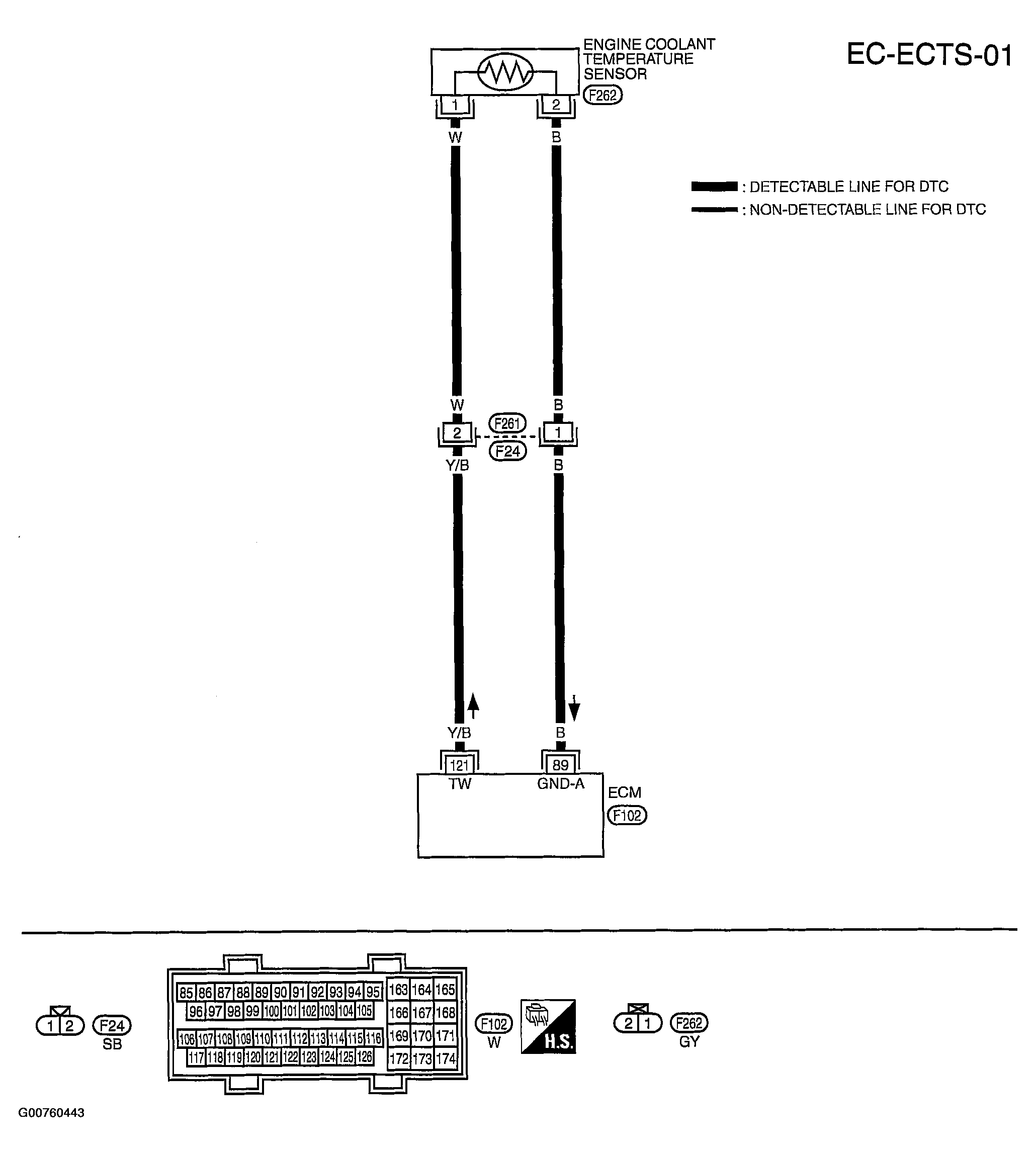

Fig 1: Circuit Diagram - EC-ECTS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
