Removal And Installation Of Rear View Camera Control Unit: Removal

  1. Remove the trunk trim. Refer to TRUNK ROOM TRIM & TRUNK LID FINISHER .
  2. Remove the rear parcel shelf finisher. Refer to REAR PARCEL SHELF FINISHER .
  3. Remove the bolts (2), and remove rear view camera control unit.

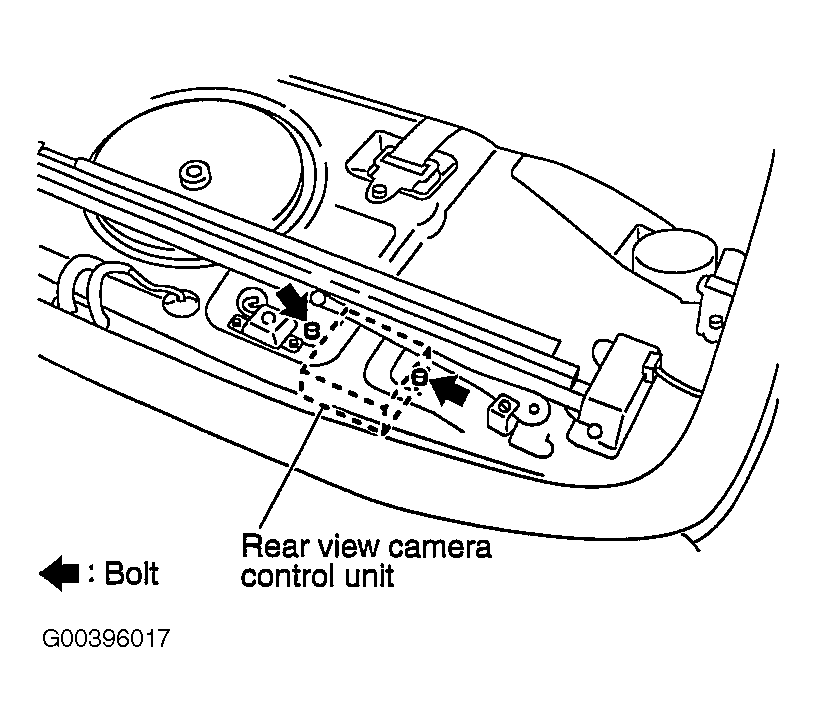

    4. Fig 1: Locating Rear View Camera Control Unit
    G00396017Courtesy of NISSAN MOTOR CO., U.S.A.
