Brakes
>>
Traction Control
>>
Brake Control System
>>
System Description
>>
Hydraulic Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Hydraulic Circuit Diagram

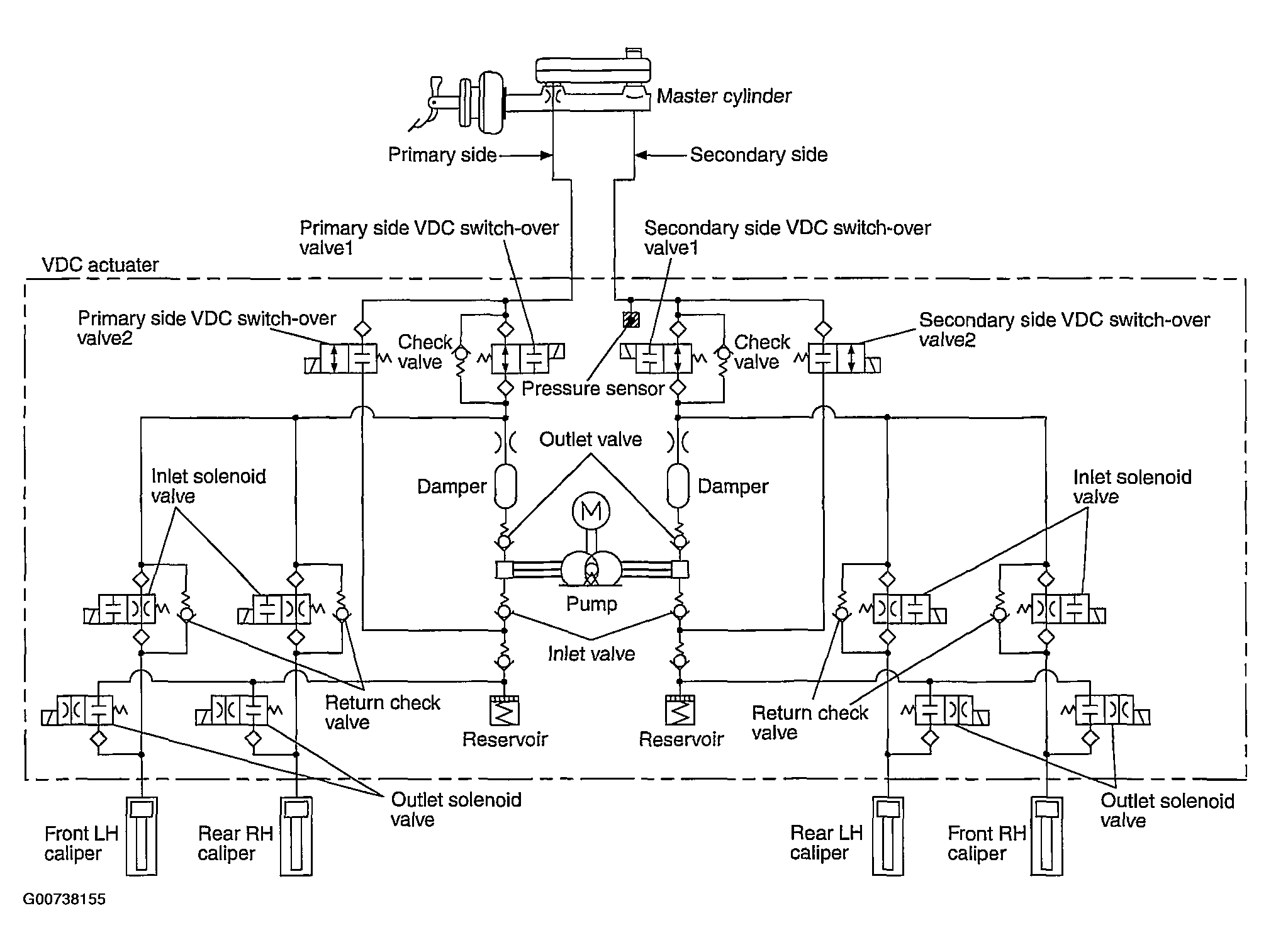

Fig 1: Identifying Hydraulic Circuit Components
Courtesy of NISSAN MOTOR CO., U.S.A.
