Terminal And Reference Value For Trunk Closure Control Unit

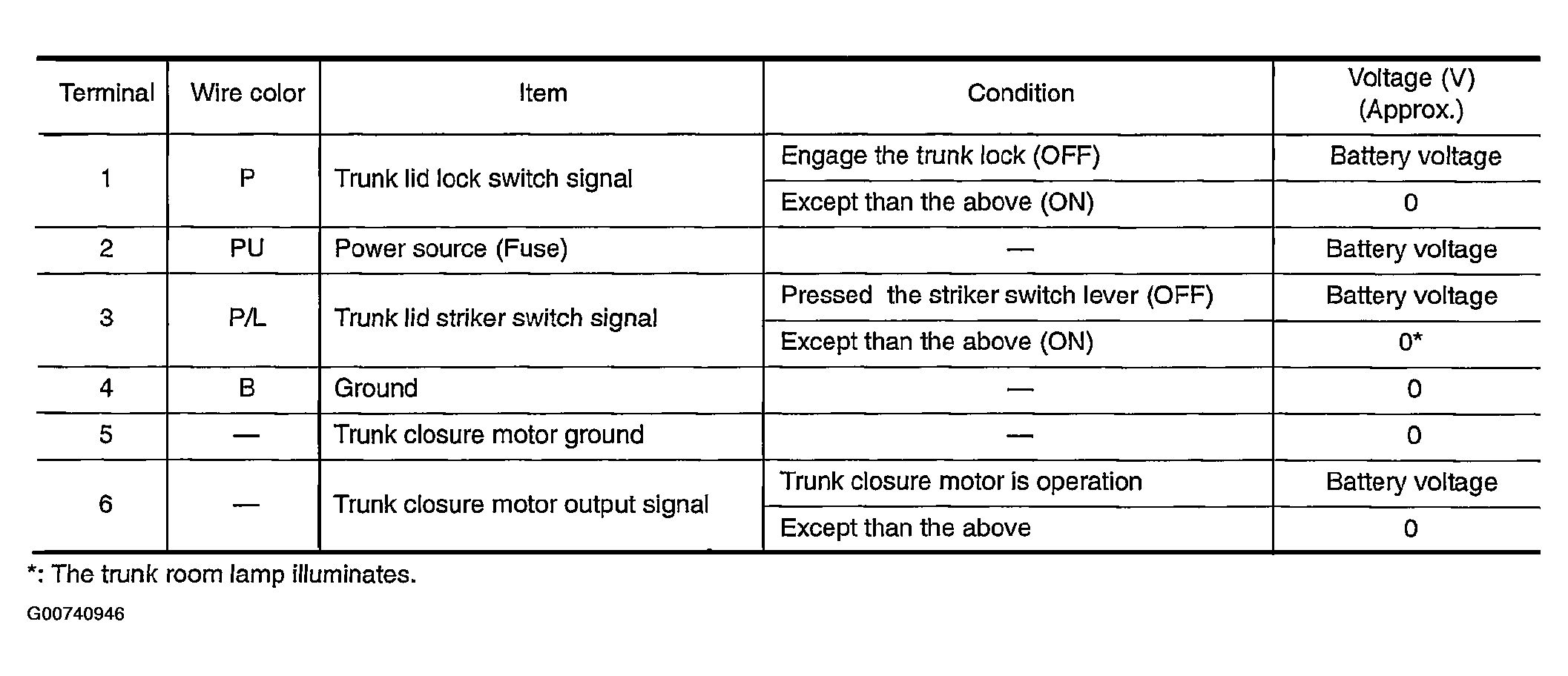

Fig 1: Terminal and Reference Value for Trunk Closure Control Unit
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
