Removal And Installation Of Auto Closure Unit: Removal

  1. Remove trunk rear finisher. Refer to REMOVAL AND INSTALLATION OF TRUNK CLOSURE CONTROL UNIT  .
  2. Disconnect the harness connector.
  3. Remove the mounting bolt, and remove auto closure unit.

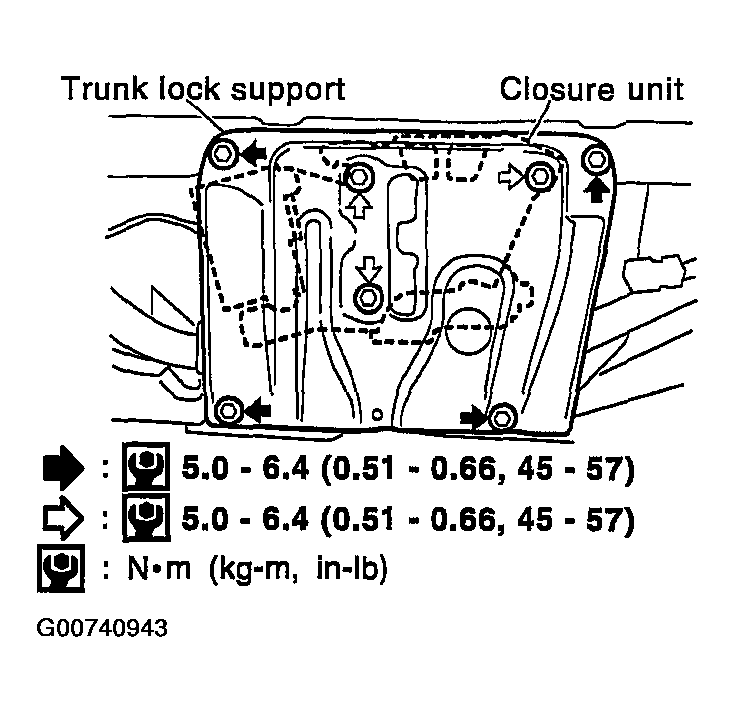

Fig 1: Removal and Installation of Auto Closure Unit
G00740943Courtesy of NISSAN MOTOR CO., U.S.A.
