Remote Keyless Entry System: Schematic

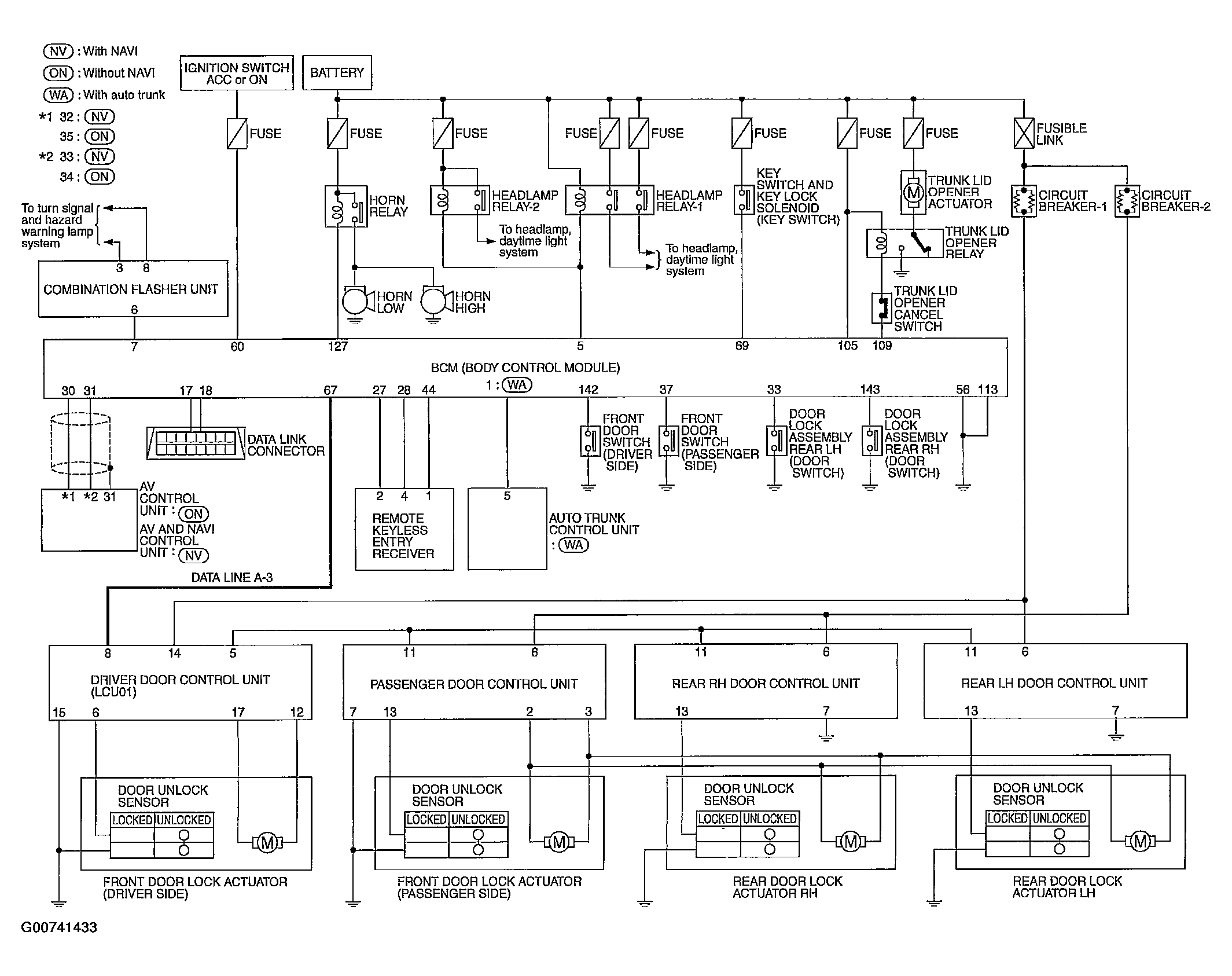

Fig 1: Schematic

G00741433

Courtesy of NISSAN MOTOR CO., U.S.A.
