3. Check Detention Switch

Check continuity between A/T device (detention switch) terminals 6 and 7.

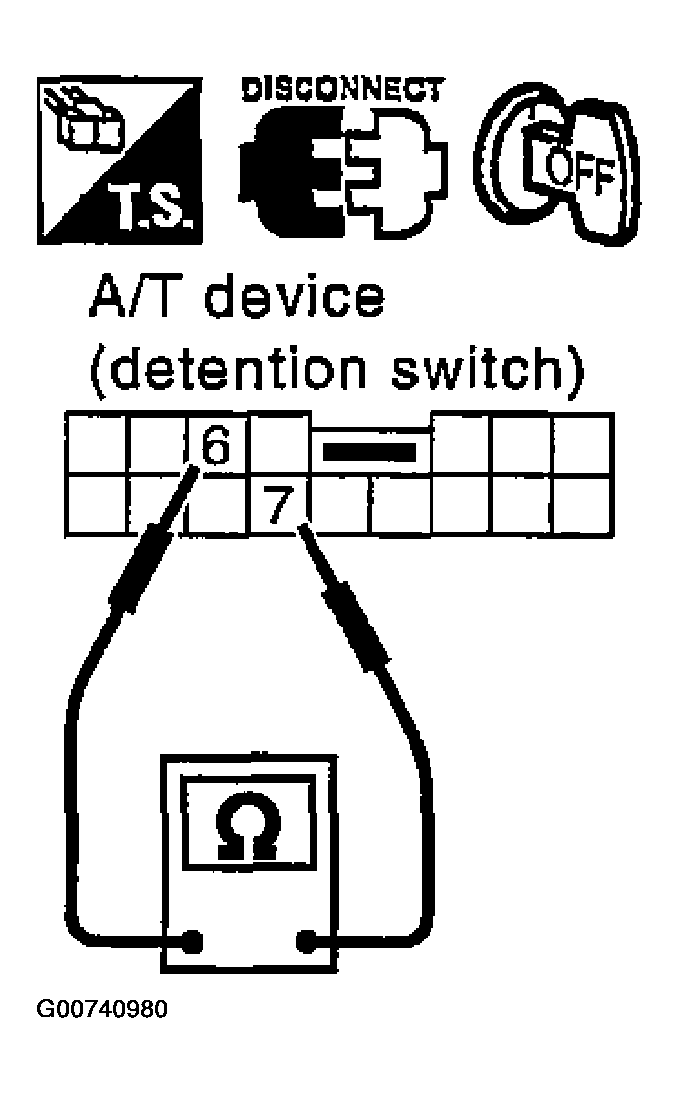

Fig 1: Checking Detention Switch (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Detention Switch (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK : GO TO 4.
2. NG : Replace A/T device.
