Fail-Safe Function

The fail-safe function operates to regulate solenoid valve operation in response to engine speed, thereby maintaining the required steering force.

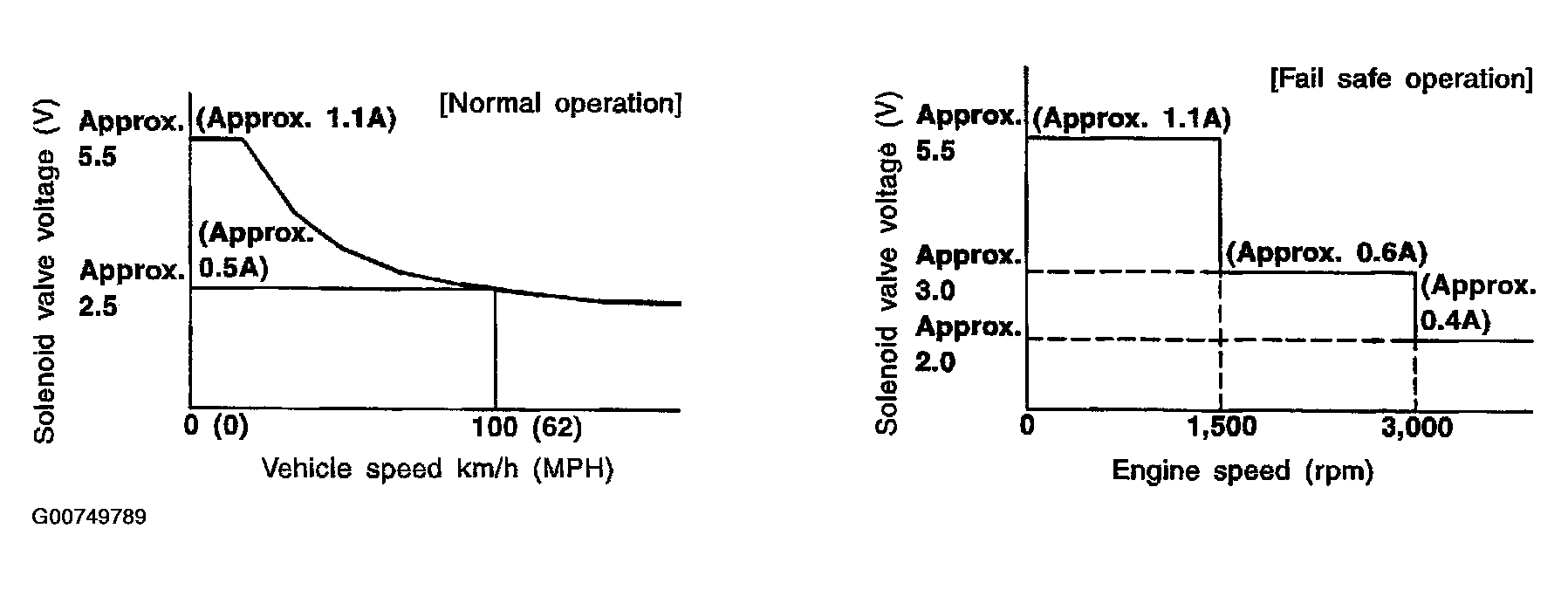

Fig 1: Fail-Safe Function

Courtesy of NISSAN MOTOR CO., U.S.A.
