Freeze Frame Data and 1st Trip Freeze Frame Data

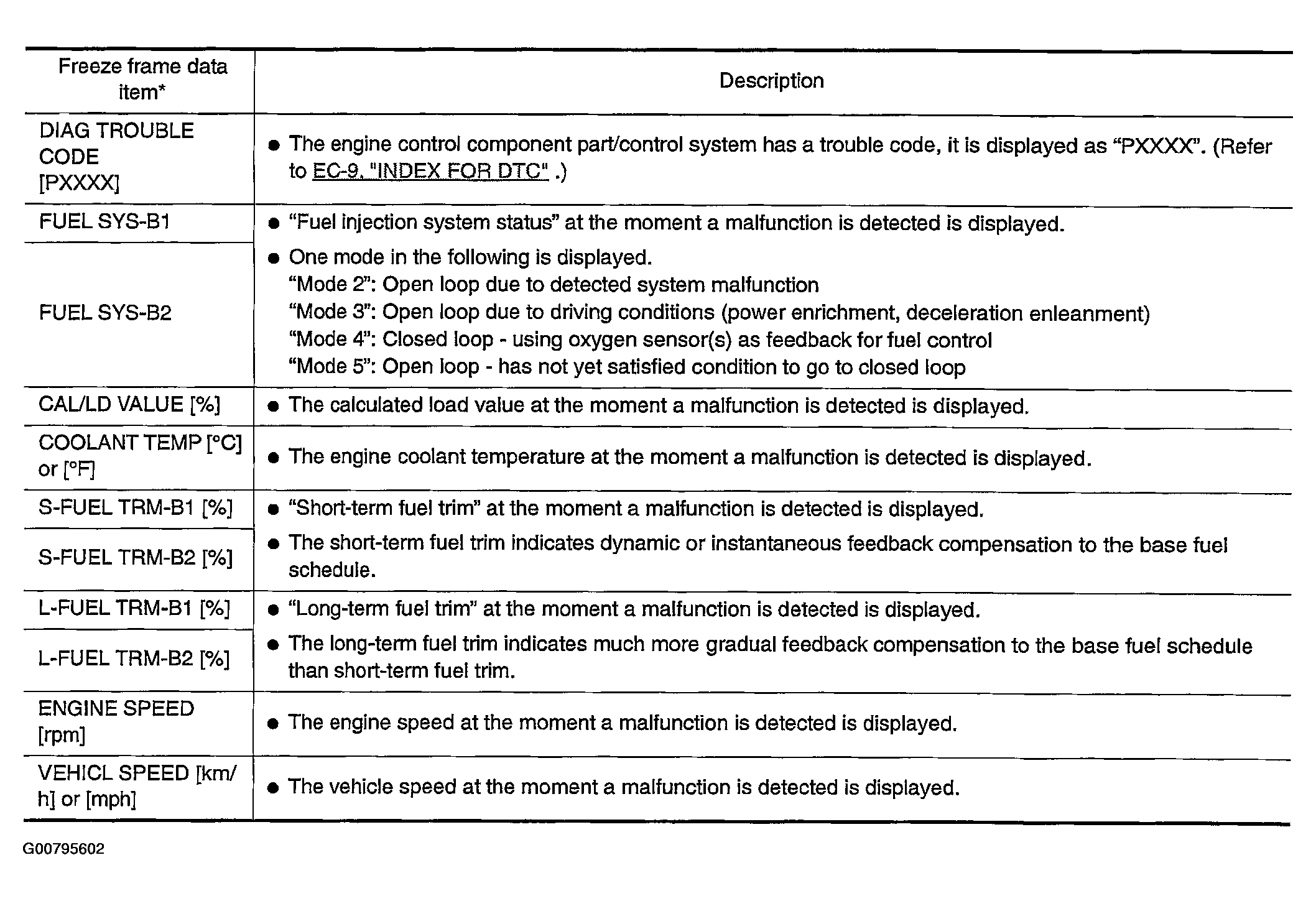

Fig 1: Identifying Freeze Frame Data & 1st Trip Freeze Frame Data (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying Work Items In Work Support Mode (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
