With CONSULT-II

  1. Remove EVAP canister vent control valve from EVAP canister.

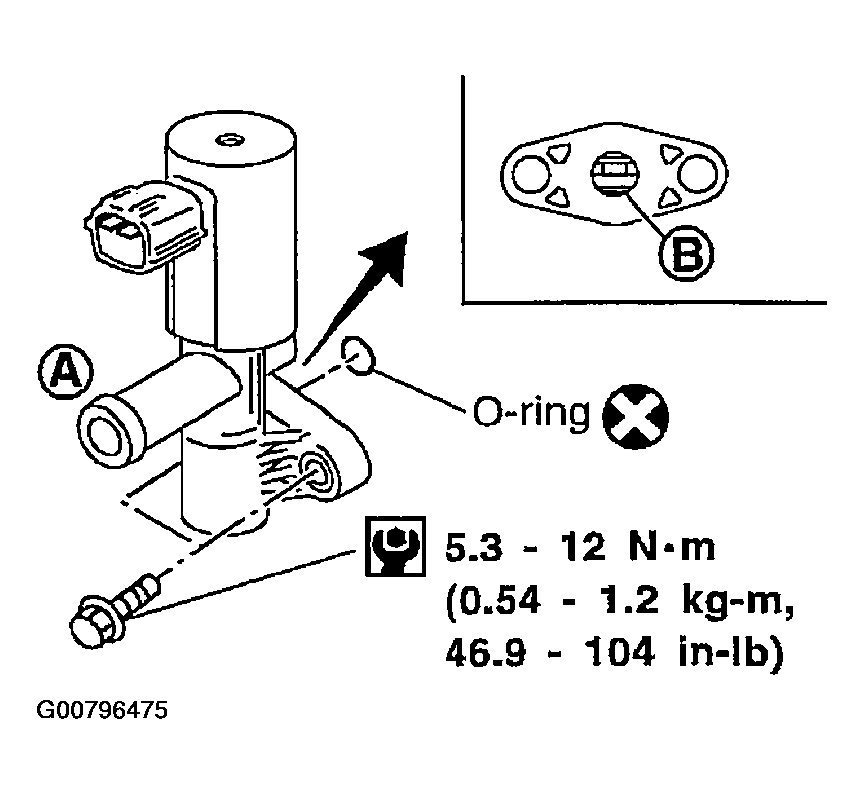

    Fig 1: EVAP Canister Vent Control Valve To EVAP Canister Torque Specifications
    G00796475Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check portion B  of EVAP canister vent control valve for being rusted.
  3. Reconnect harness connectors disconnected.
  4. Turn ignition switch ON.
  5. Perform "VENT CONTROL/V" in "ACTIVE TEST" mode.

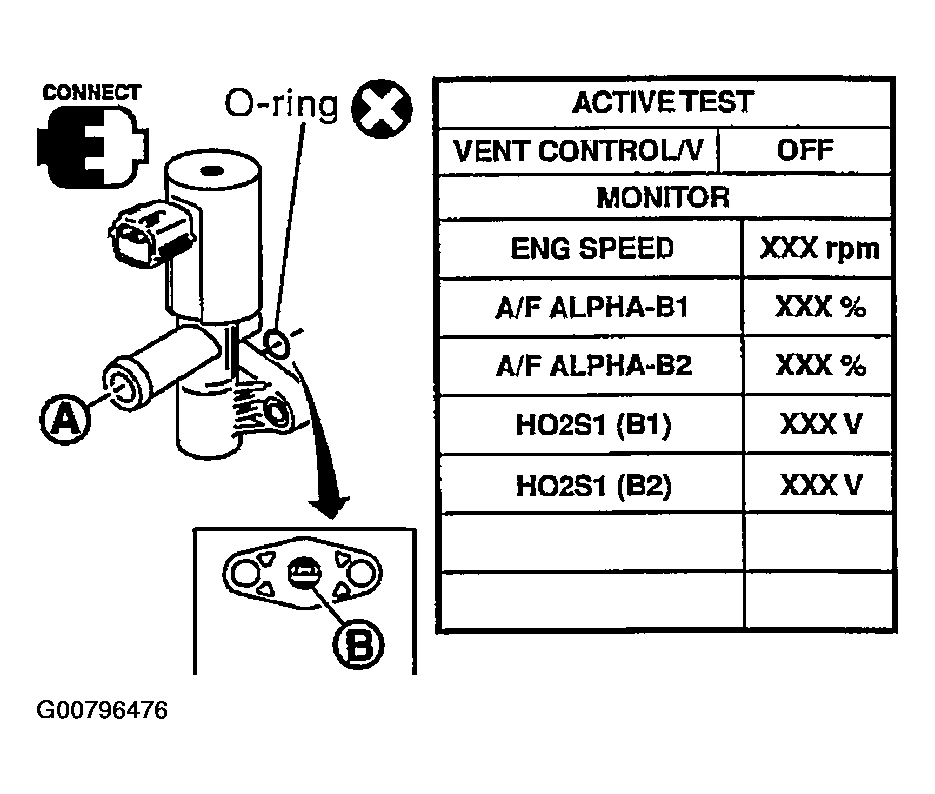

    Fig 2: Scan Tool Display - Active Test
    G00796476Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Check air passage continuity and operation delay time.
  7. Clean the air passage (Portion A  to B  ) of EVAP canister vent control valve using an air blower.
  8. Perform Test No. 9 again.
