2. Check Exhaust Gas Leak

  1. Start engine and run it at idle.
  2. Listen for an exhaust gas leak before the three way catalyst (Manifold).

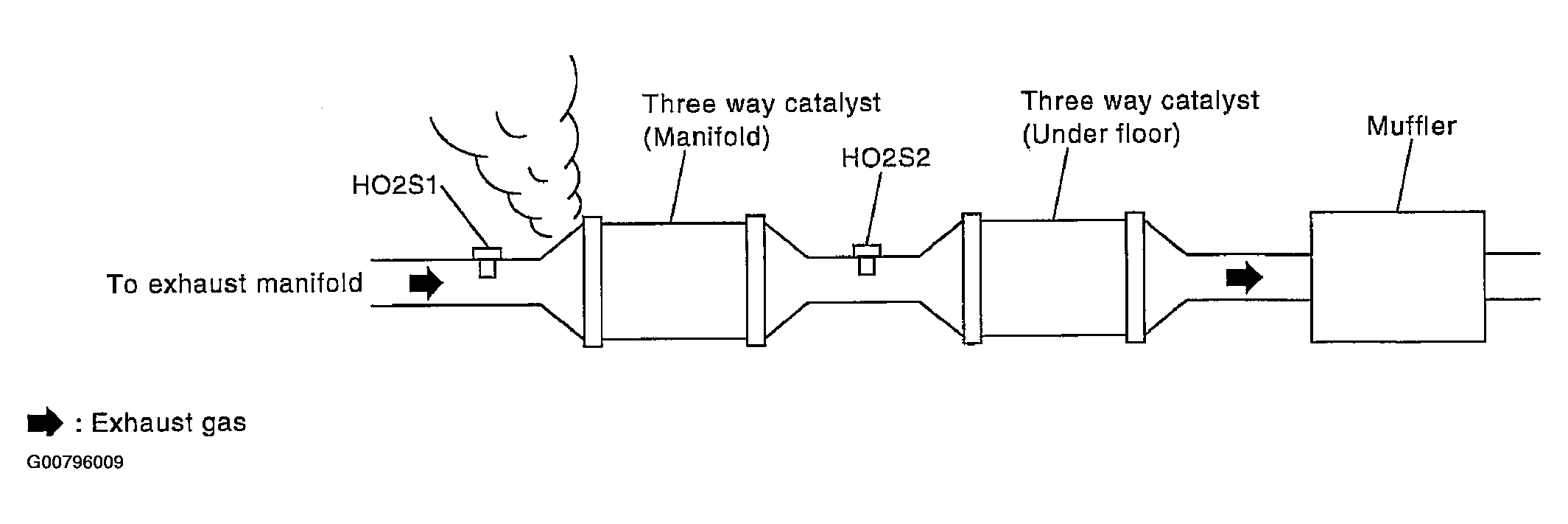

Fig 1: Checking For Exhaust Leaks
G00796009Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 3.
  2. NG: Repair or replace.
