3. Check For Exhaust Gas Leak

  1. Start engine and run it at idle.
  2. Listen for an exhaust gas leak before three way catalyst (Manifold).

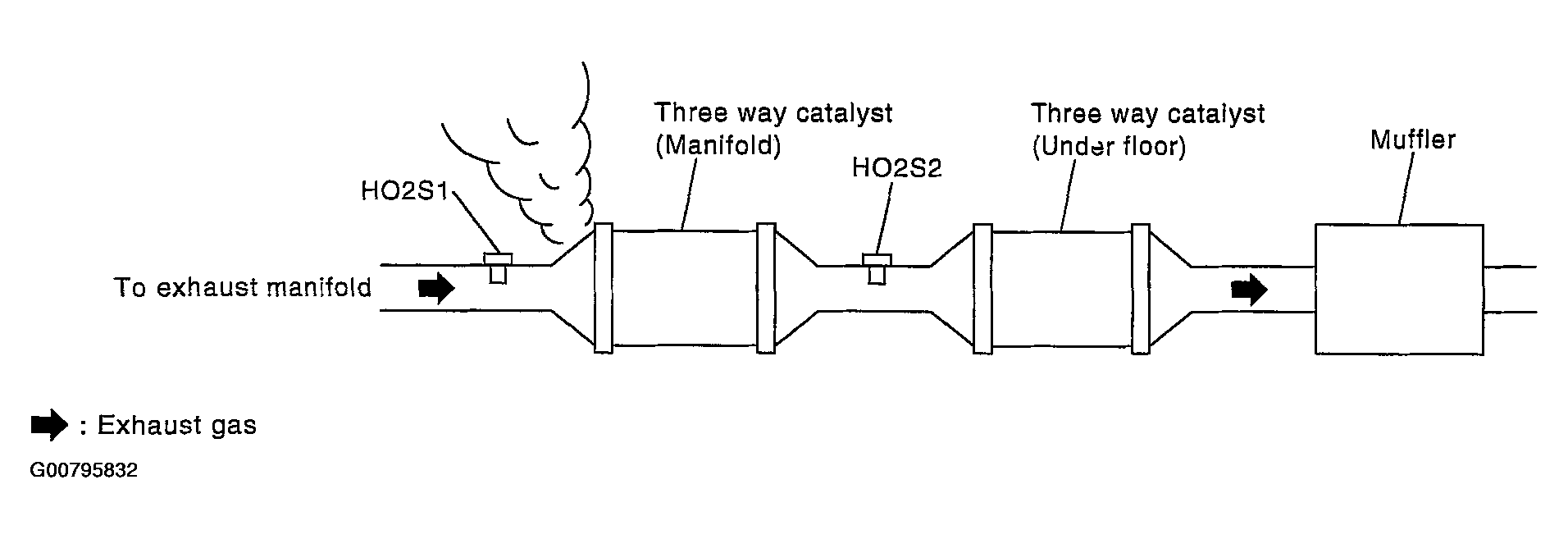

Fig 1: Checking For Exhaust System Leaks
G00795832Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 4.
  2. NG: Repair or replace.
