Warning Indications

When combination meter receives warning signal from some control units or sensors, then combination meter warning lamp is illuminated.

Then combination meter sends warning signal to AV control unit to display warning indications on the screen.

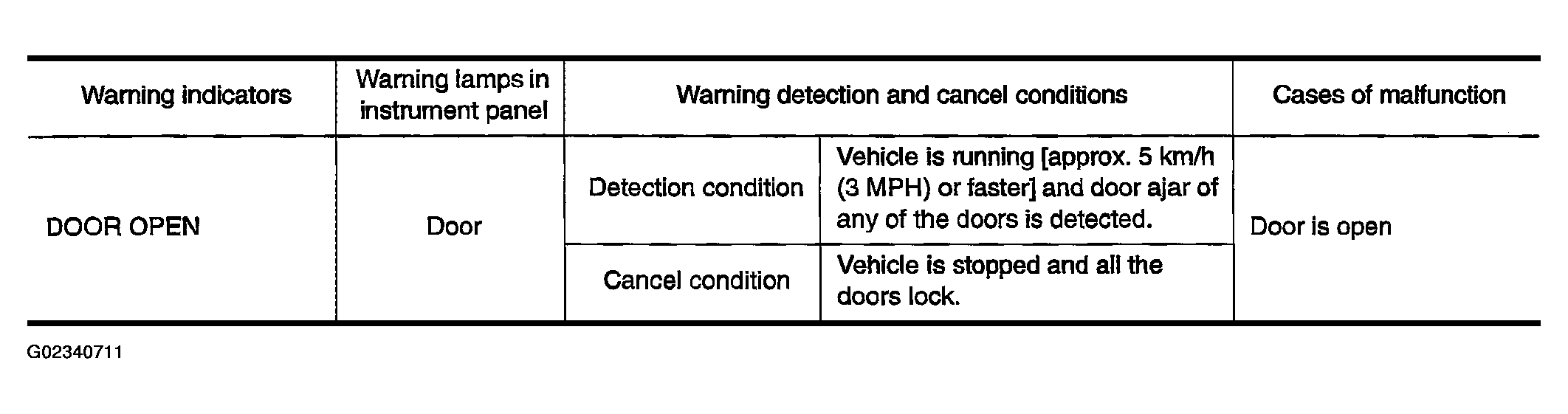

Fig 1: Warning Indicators Warning Detection And Cancel Conditions Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
