Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System
>>
System Description
>>
System Diagram
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

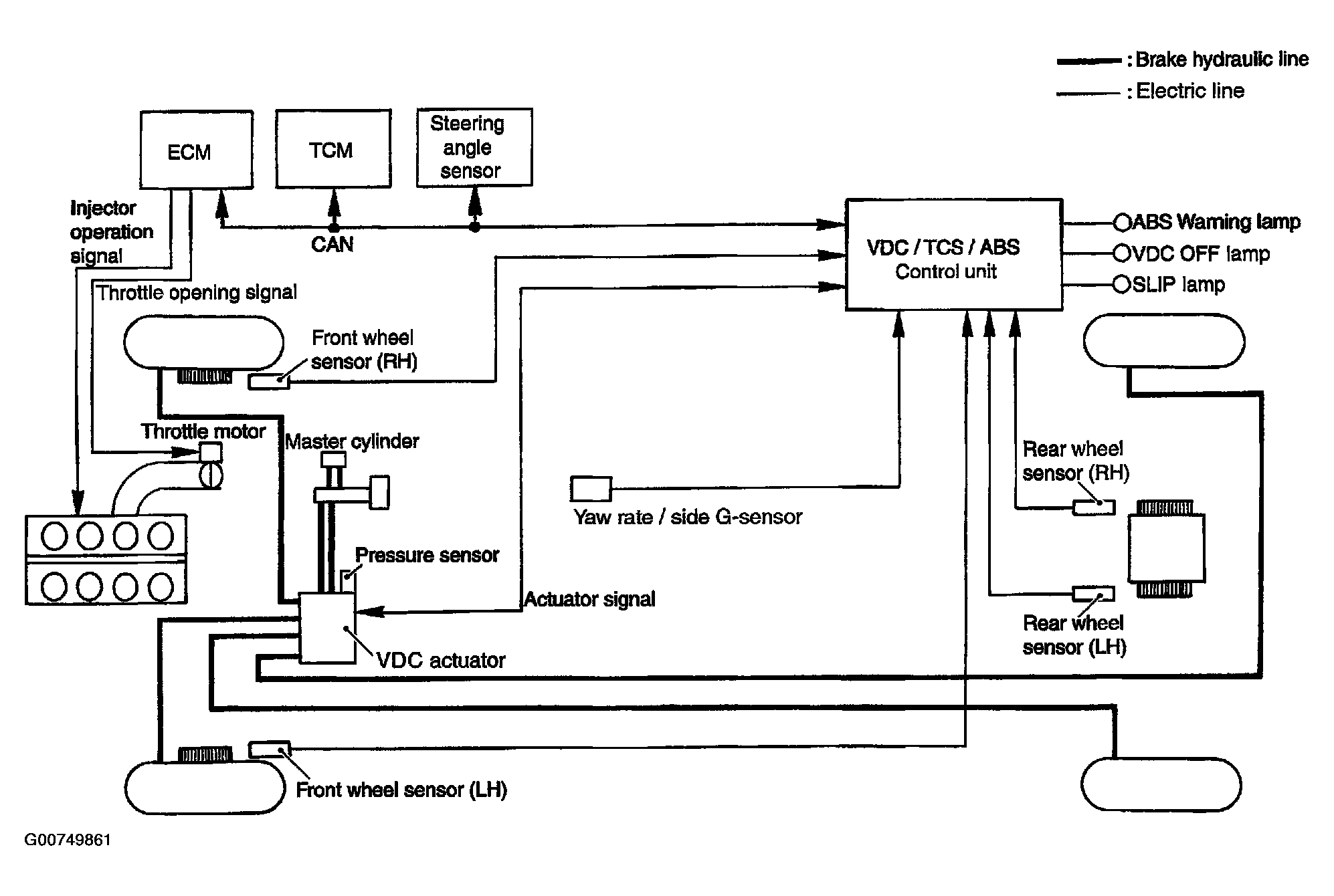

System Diagram
Fig 1: Viewing Brake Control System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
