Navigation System: Schematic

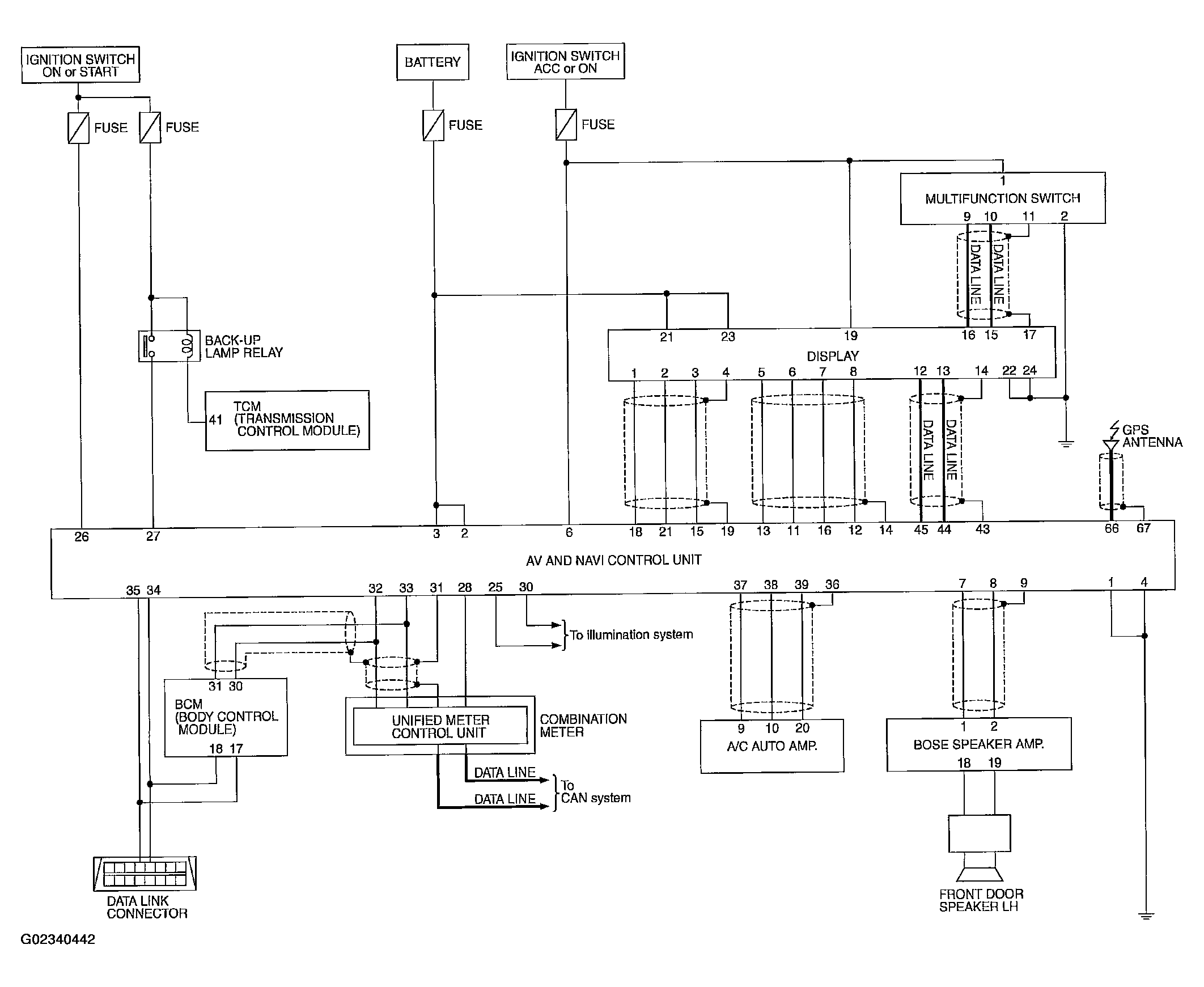

Fig 1: Navigation System Schematic Diagram
G02340442Courtesy of NISSAN MOTOR CO., U.S.A.

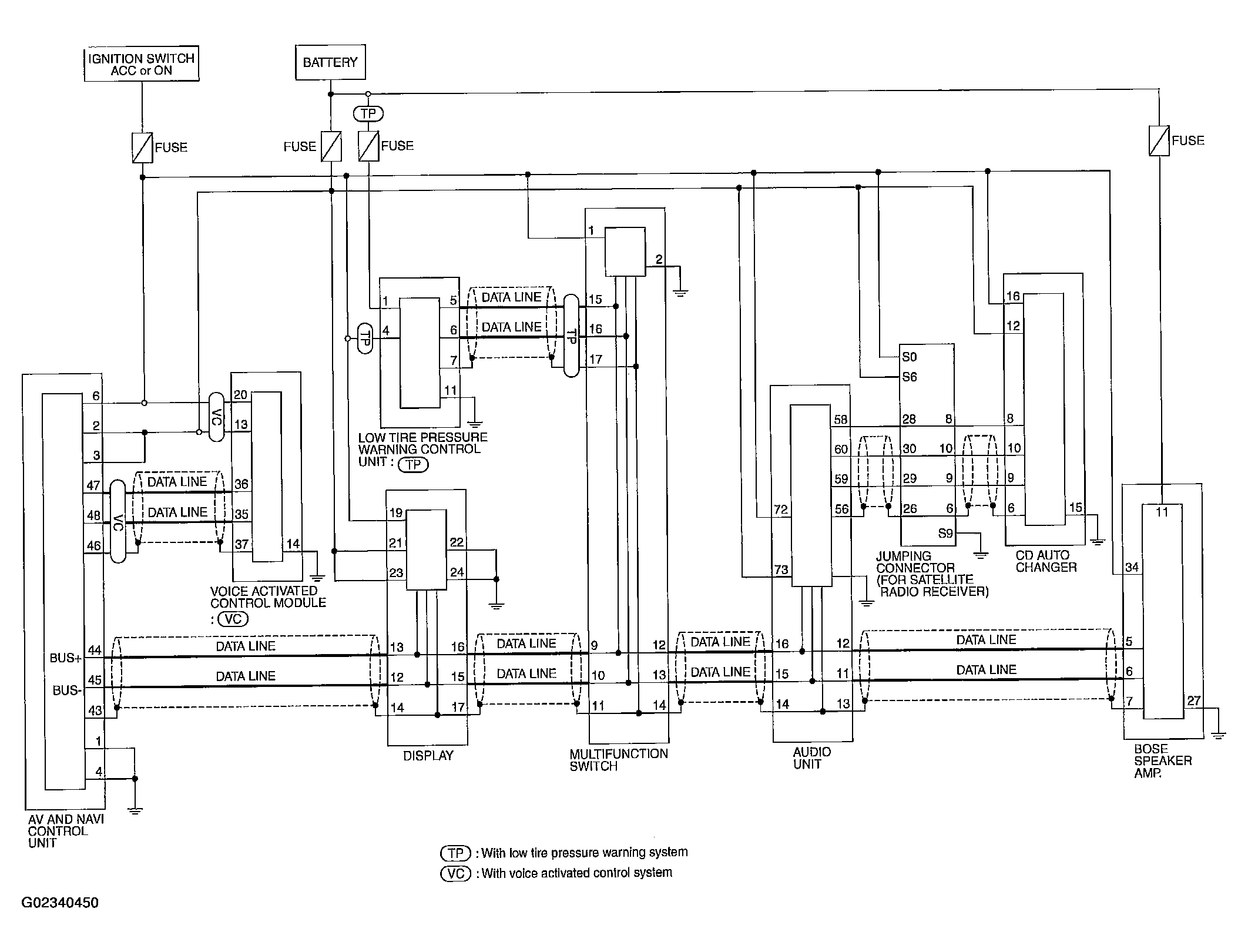

Fig 1: Navigation System Schematic Diagram
G02340450Courtesy of NISSAN MOTOR CO., U.S.A.
