Clutch And Band Chart

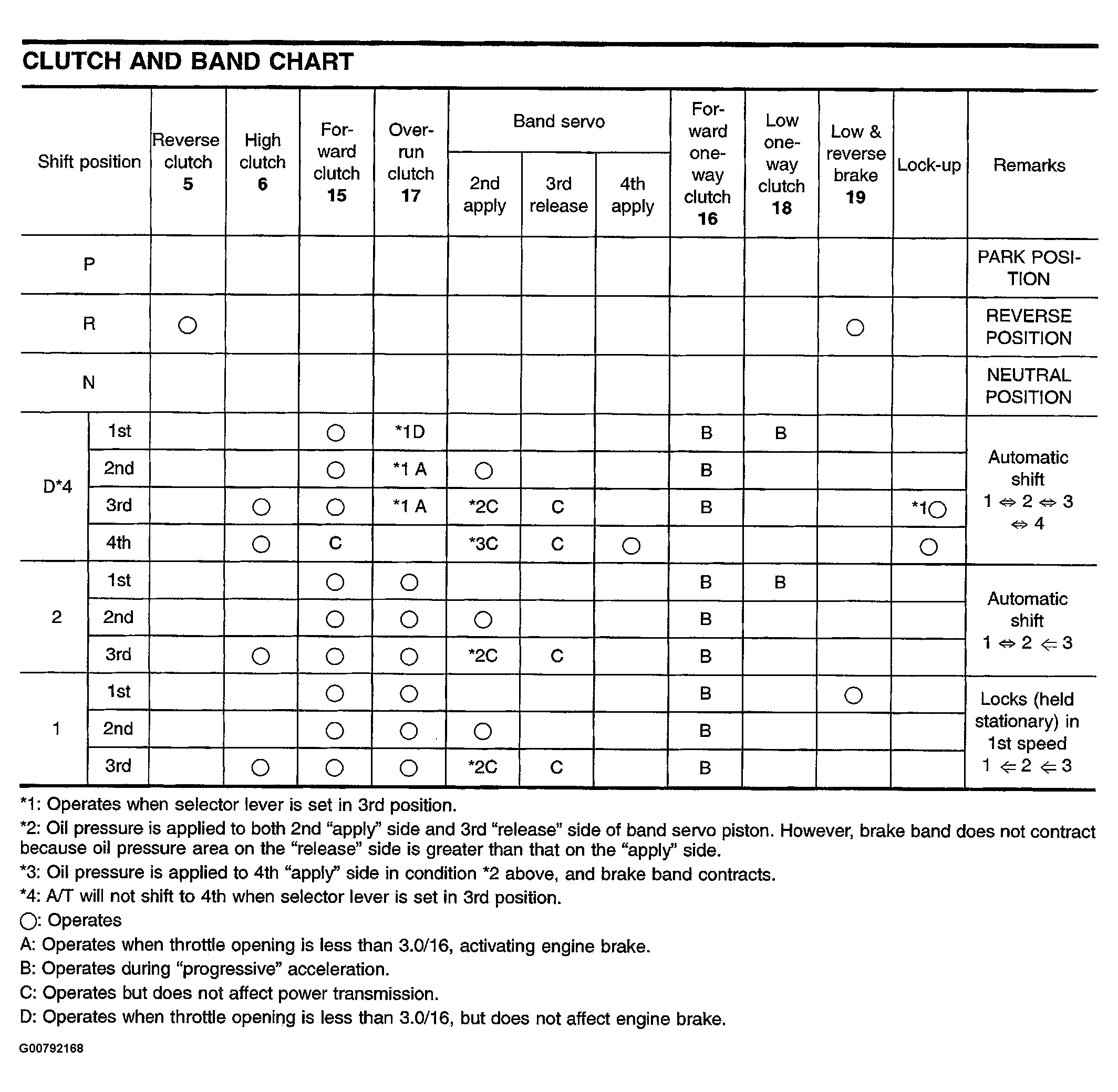

Fig 1: Identifying Clutch And Band Chart

G00792168

Courtesy of NISSAN MOTOR CO., U.S.A.
