3 Check Control Valve

1. Disassemble control valve assembly. Refer to CONTROL VALVE ASSEMBLY .
2. Check to ensure that:
   • Valve, sleeve and plug slide along valve bore under their own weight.
   • Valve, sleeve and plug are free from burrs, dents and scratches.
   • Control valve springs are free from damages, deformation and fatigue.
   • Hydraulic line is free from obstacles.

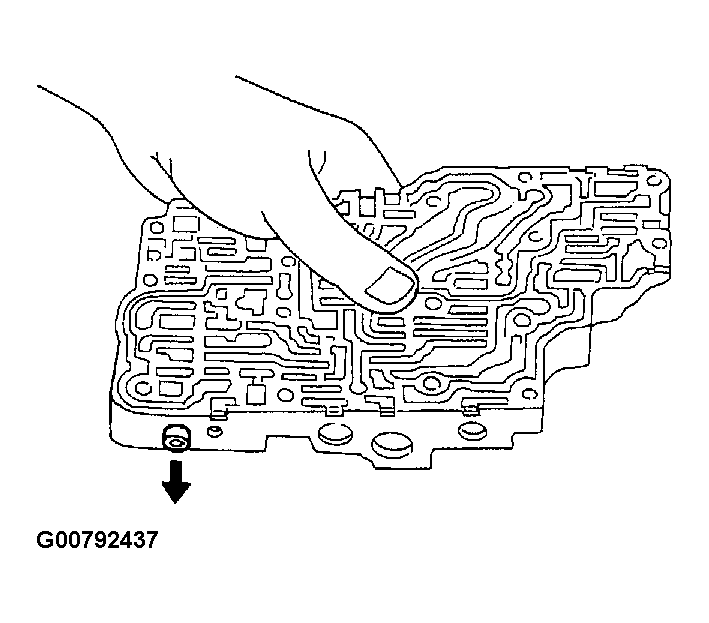

Fig 1: Identifying Control Valve Assembly

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 4.

NG: Repair control valve.
