Trouble Diagnosis - Introduction
>>
Work Flow
>>
Notes
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Work Flow: Notes

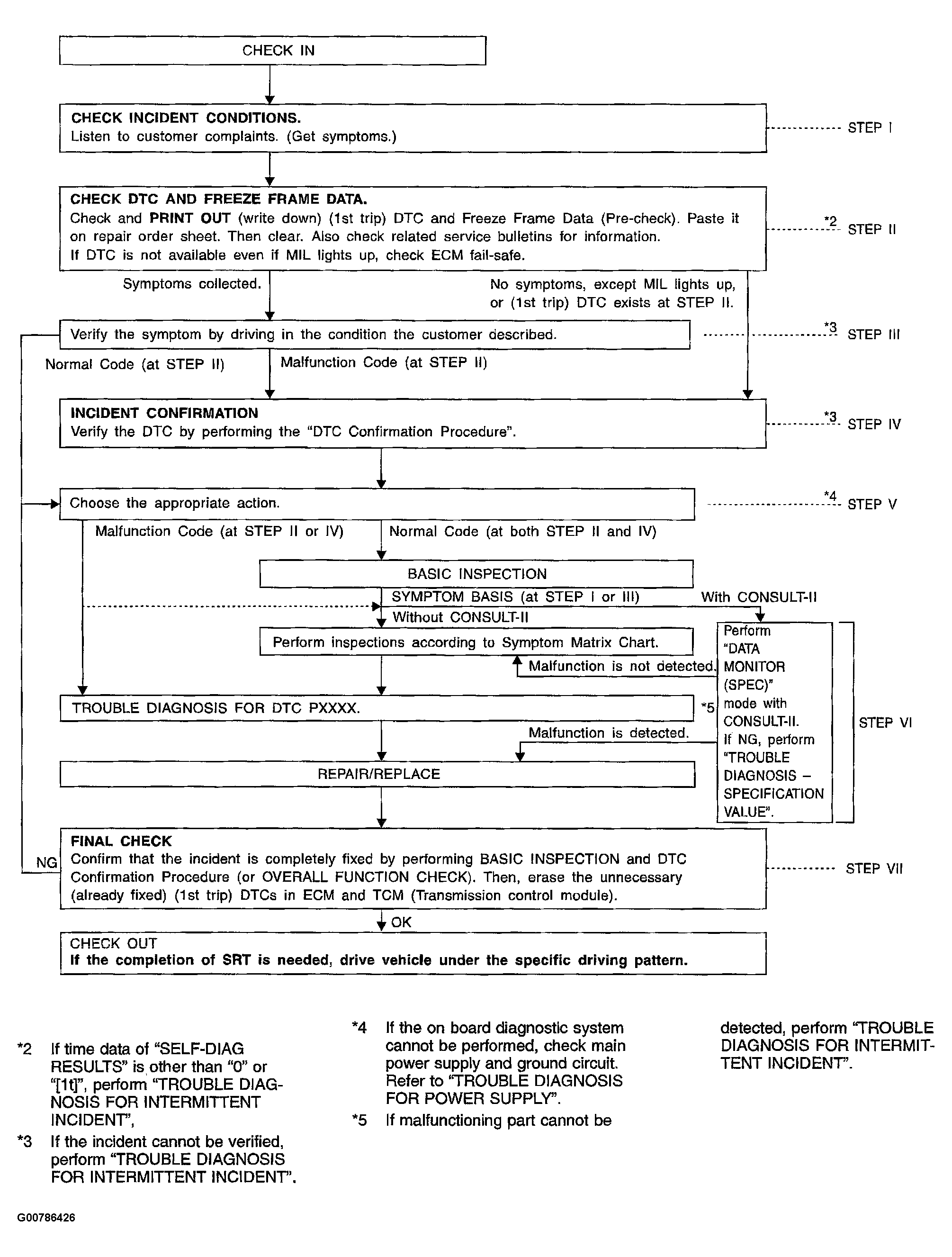

Fig 1: Trouble Diagnosis Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
