Wiring Diagram - TCS

NOTE: For wiring diagram references to EL POWER , seePOWER DISTRIBUTION , and GROUND DISTRIBUTION .

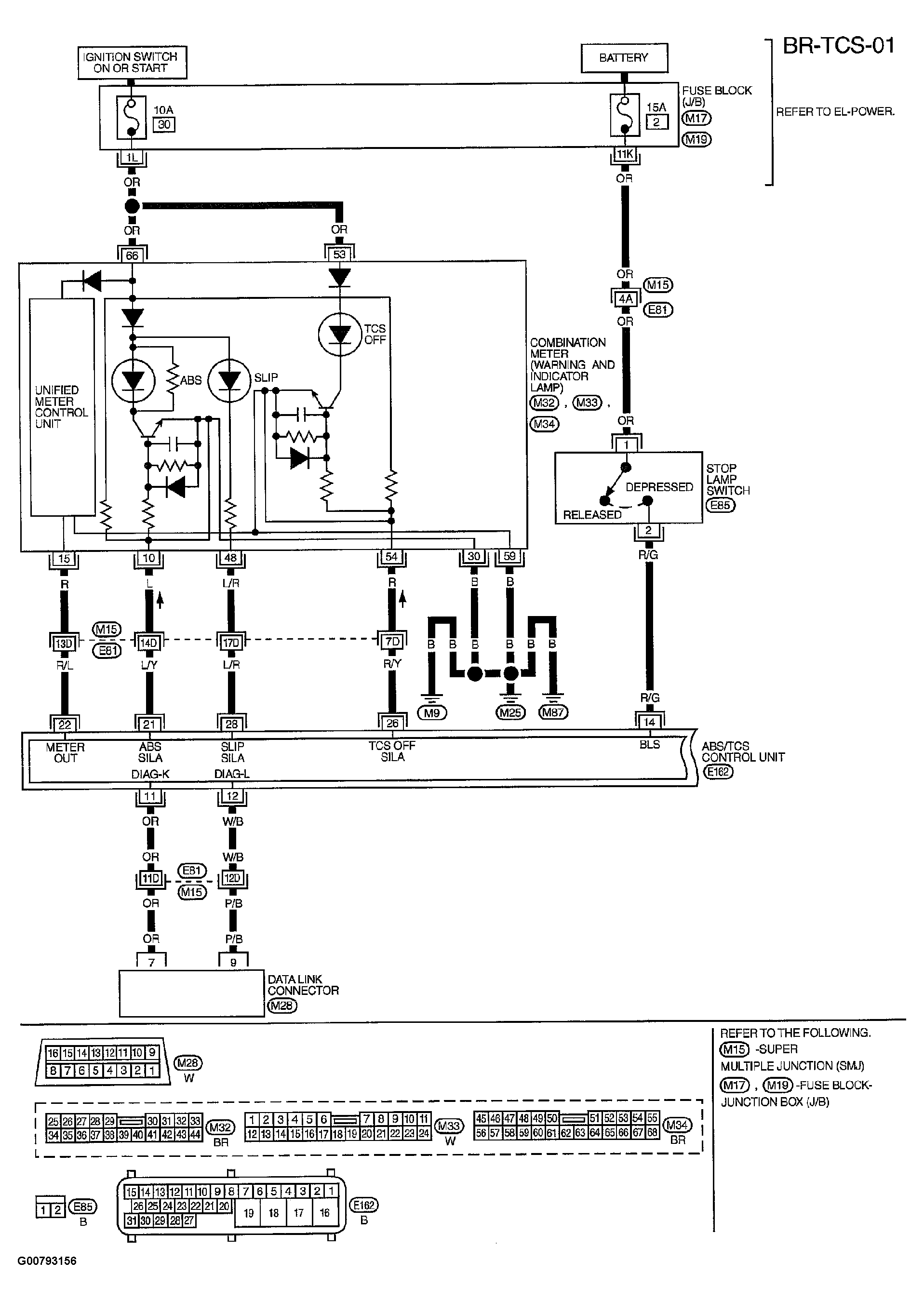

Fig 1: TCS Wiring Diagram & Connector Identification (1 Of 3) - BR-TCS-01

Courtesy of NISSAN MOTOR CO., U.S.A.

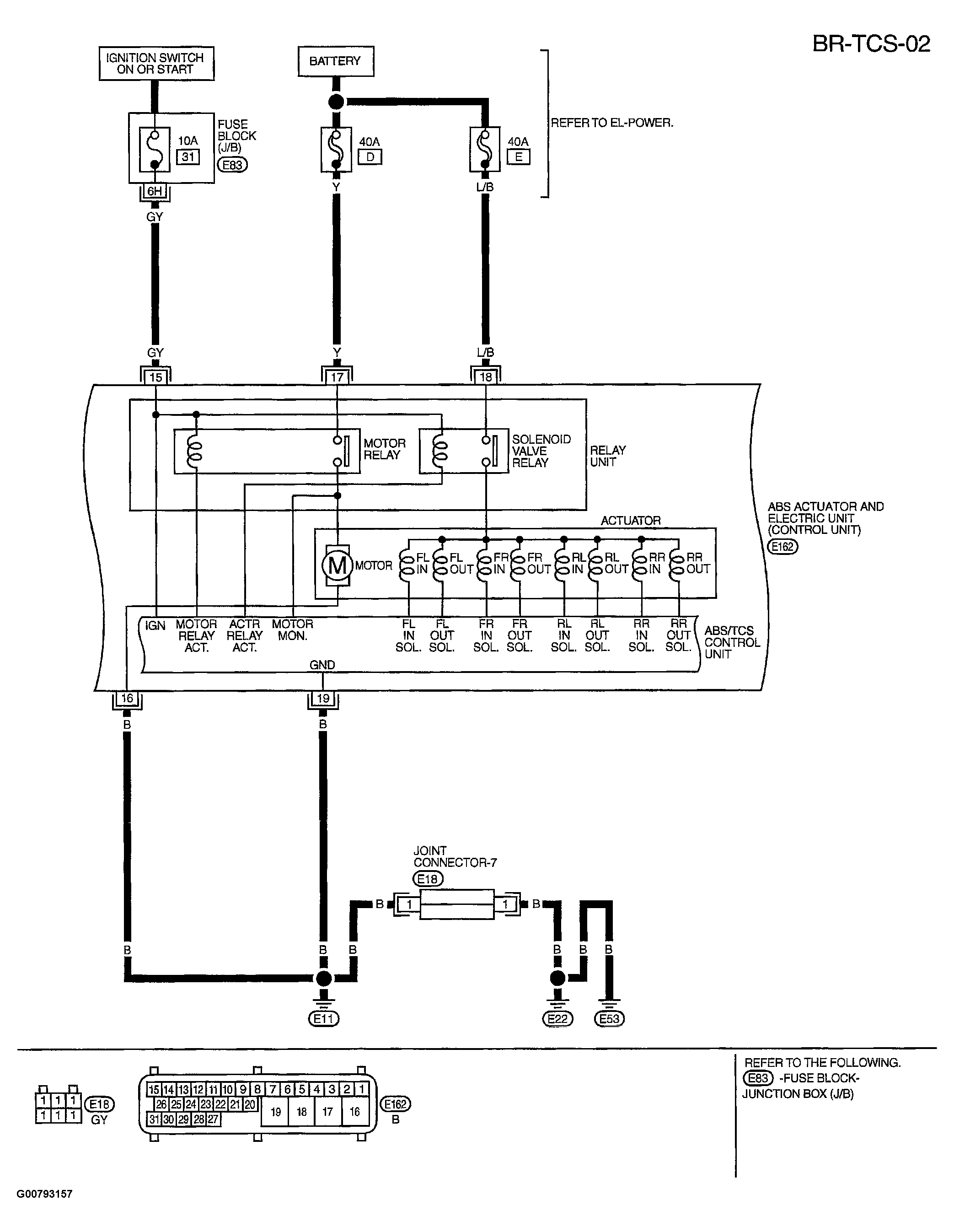

Fig 2: TCS Wiring Diagram & Connector Identification (2 Of 3) - BR-TCS-02

Courtesy of NISSAN MOTOR CO., U.S.A.

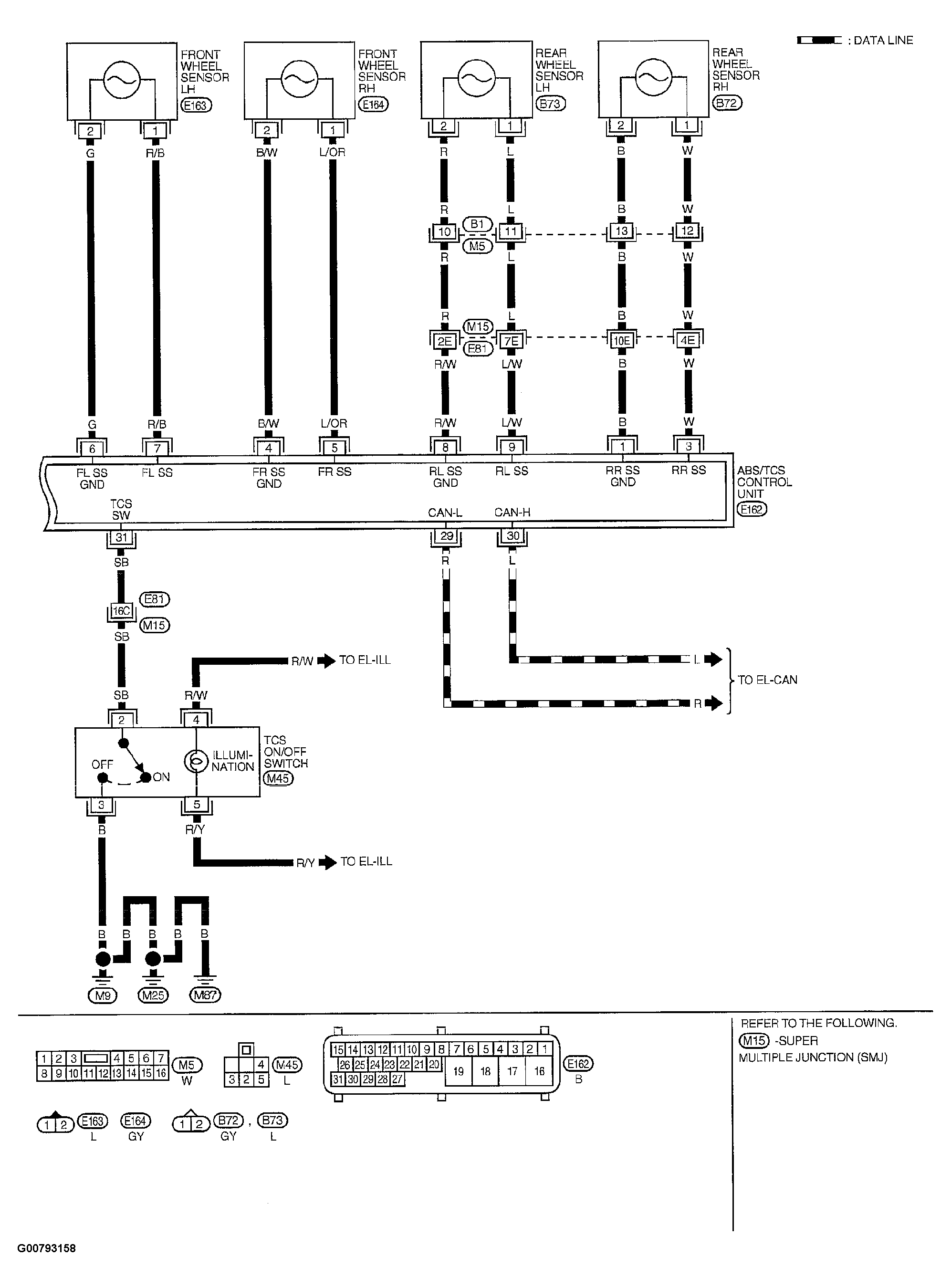

Fig 3: TCS Wiring Diagram & Connector Identification (3 Of 3) - BR-TCS-03

Courtesy of NISSAN MOTOR CO., U.S.A.

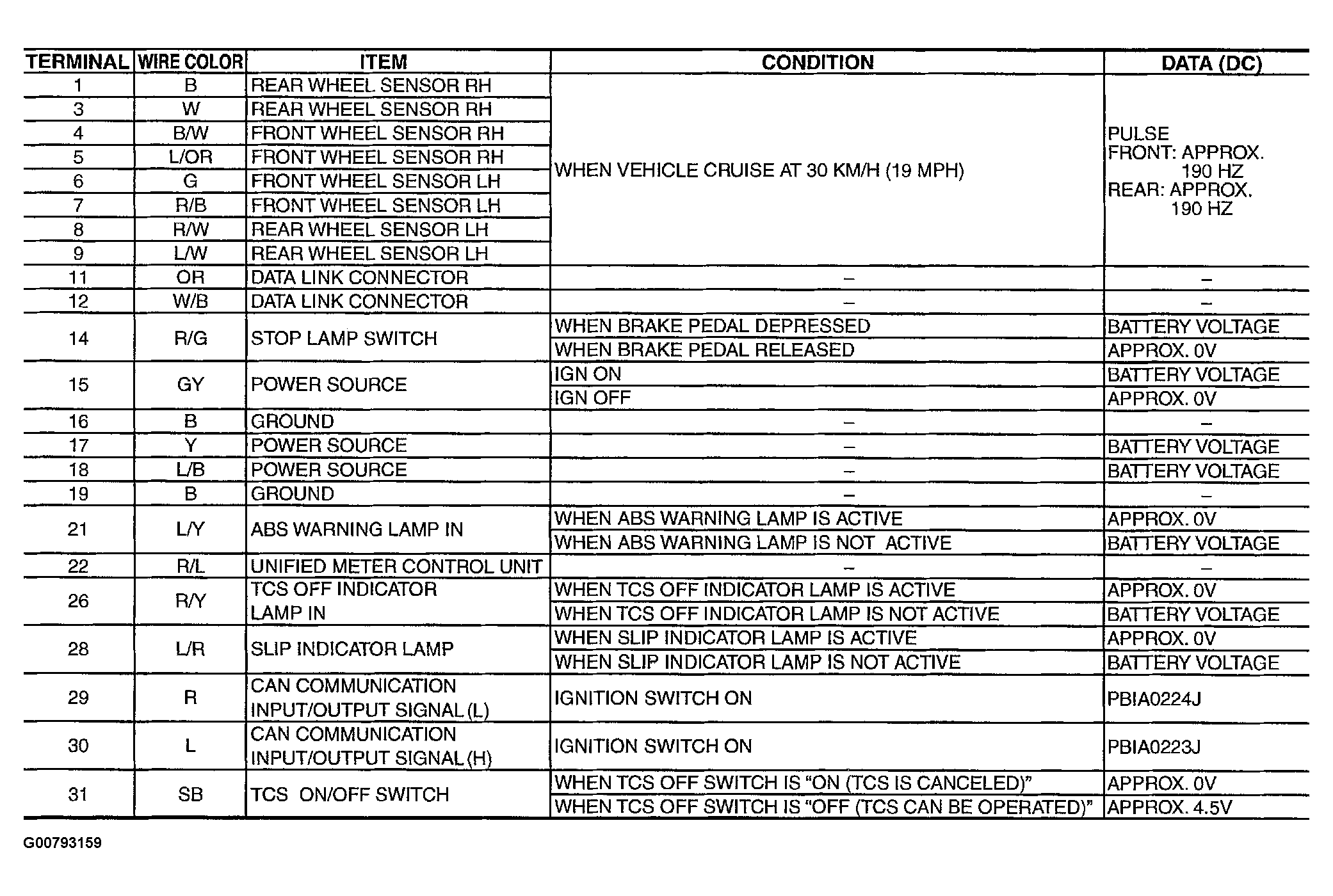

Fig 4: ABS/TCS Control Unit Pin Voltage Chart

Courtesy of NISSAN MOTOR CO., U.S.A.
