3. Check ASCD Brake Switch Power Supply Circuit

Turn ignition switch OFF.

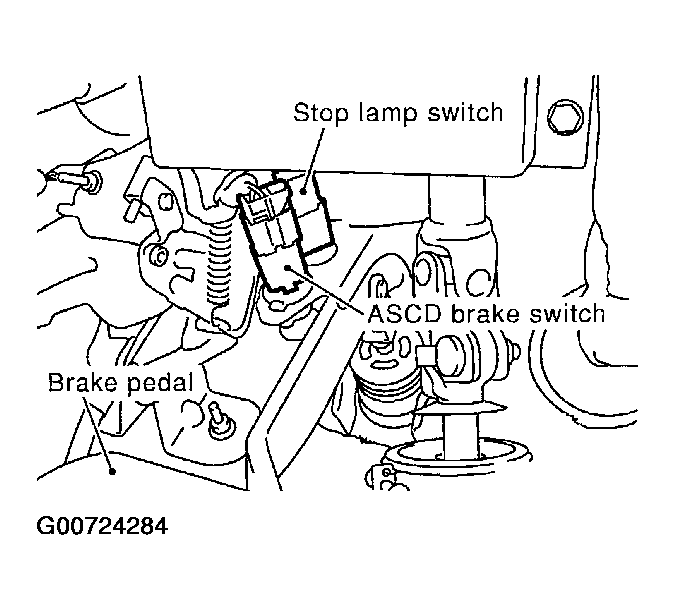

Disconnect ASCD brake switch harness connector. See Figure.
Turn ignition switch ON.
Check voltage between ASCD brake switch terminal 1 and ground under the following conditions with CONSULT-II or tester.

Fig 1: Checking Power Supply Circuit
Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Test Parameters
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK: GO TO 5 .

NG: GO TO 4.
