Test item

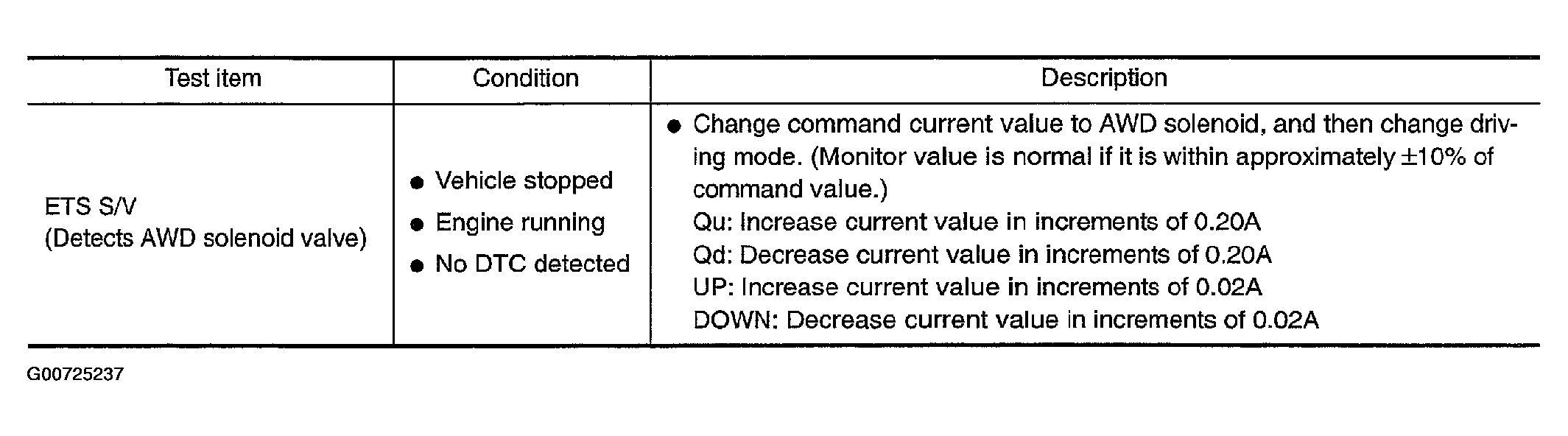

Fig 1: Displaying Active Test Mode Item List
G00725237Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION: Do not continuously energize for a long time.
