Transfer Fluid: Replacement: Draining

  1. Run the vehicle to warm up the transfer unit sufficiently.

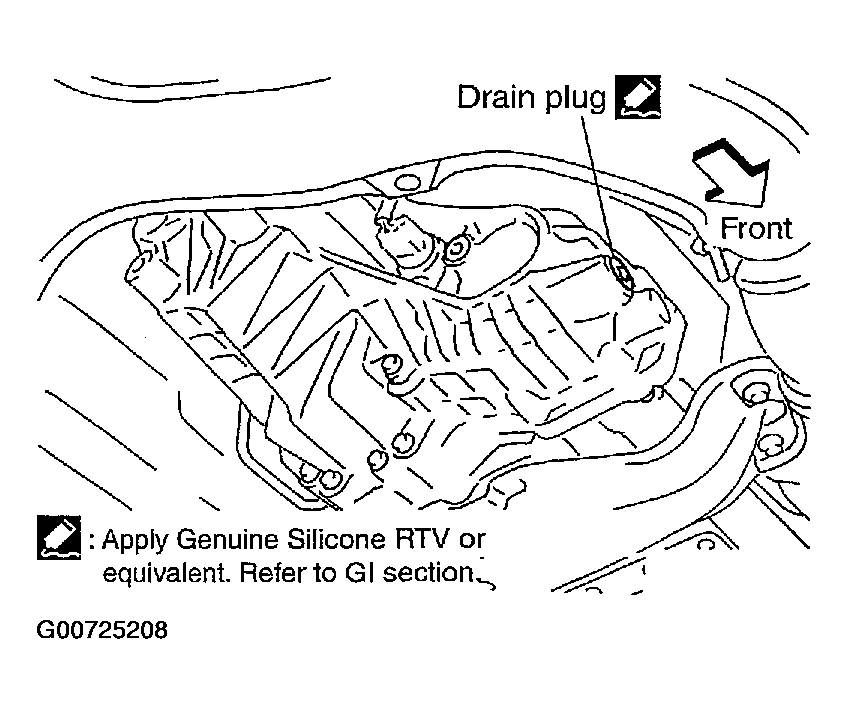

  2. Stop the engine, and remove the drain plug to drain the transfer fluid.
  3. Apply sealant to drain plug. Install drain plug on transfer and tighten to the specified torque. Refer to COMPONENTS .
