Removal And Installation (2WD Models): Components

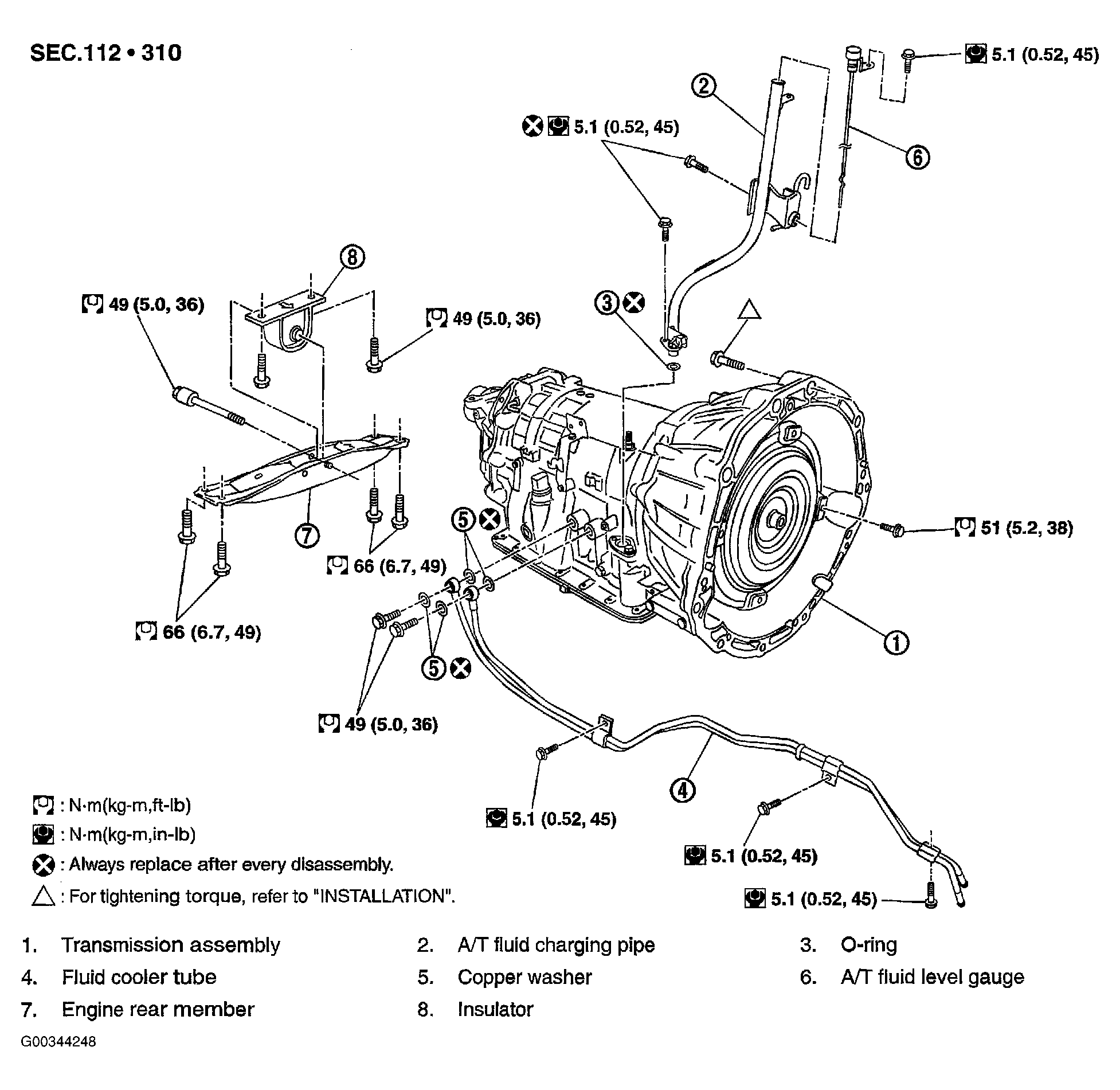

Fig 1: Removing External Components From Transmission (2WD)
G00344248Courtesy of NISSAN MOTOR CO., U.S.A.
