CAN Communication System Inspection

Check CAN Communication
1. Start engine.
2. Select CAN DIAG SUPPORT MNTR in DATA MONITOR mode for METER A/C AMP with CONSULT-II.
3. Print out CONSULT-II screen.

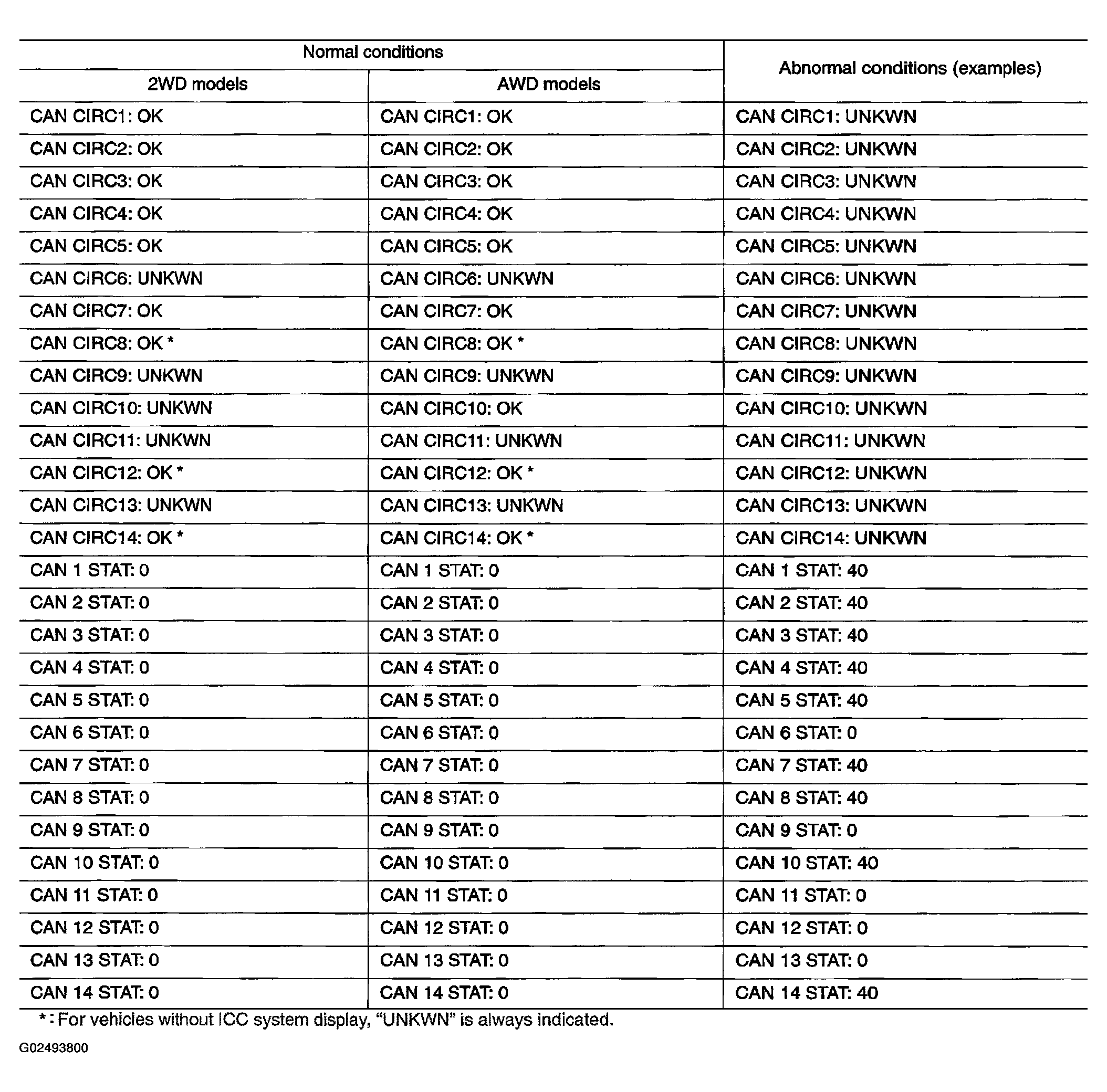

  Fig 1: CONSULT-II Screen Print Out (Example)
  Courtesy of NISSAN MOTOR CO., U.S.A.
1. Go to CAN system. Refer to CAN SYSTEM PRECAUTIONS .
