SRT Service Procedure

If a vehicle has failed the state emissions inspection due to one or more SRT items indicating INCMP, review the flowchart diagnostic sequence in Fig 1.

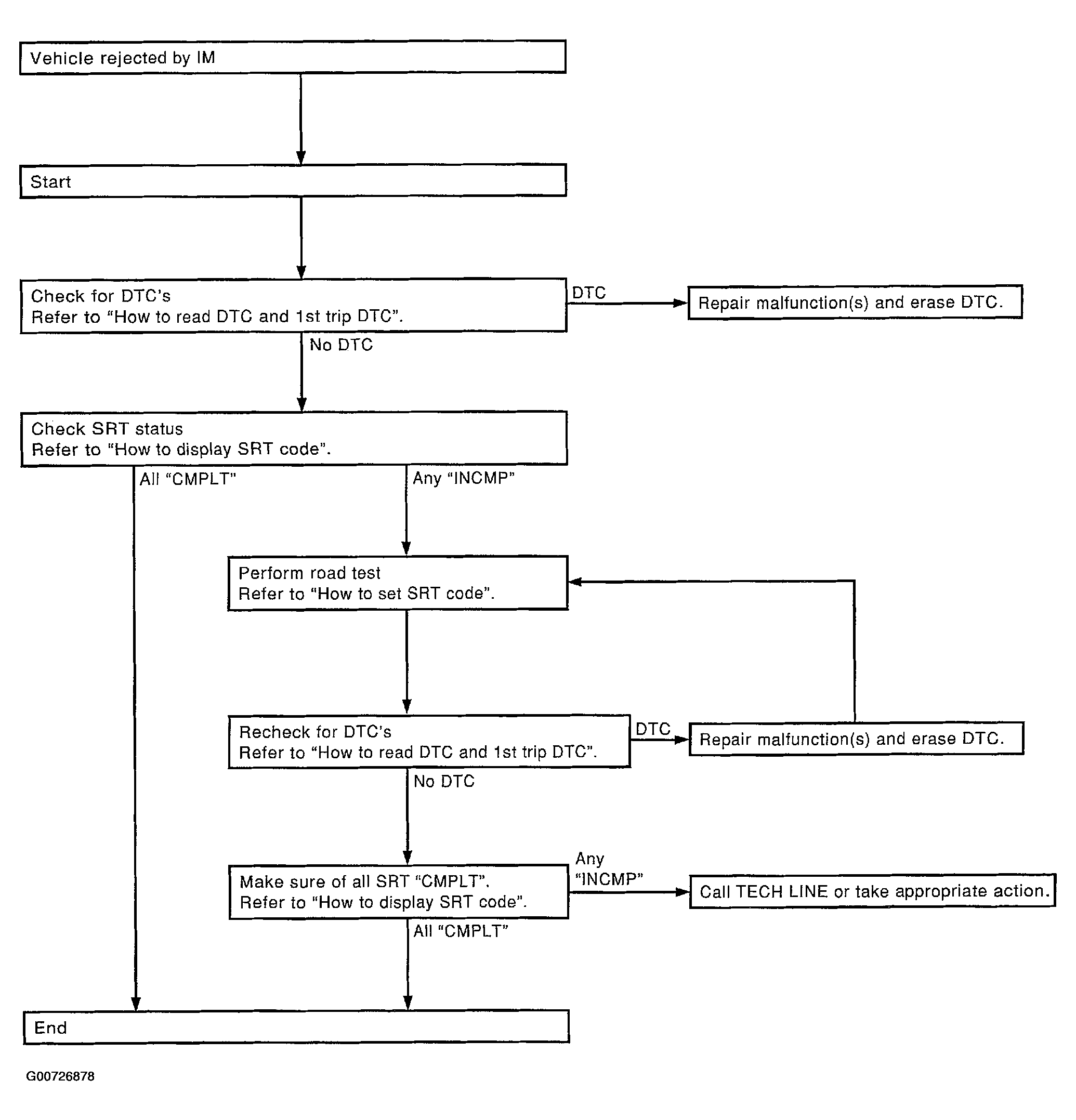

Fig 1: SRT Service Procedure Flowchart

Courtesy of NISSAN MOTOR CO., U.S.A.
