Control Valve: Valve

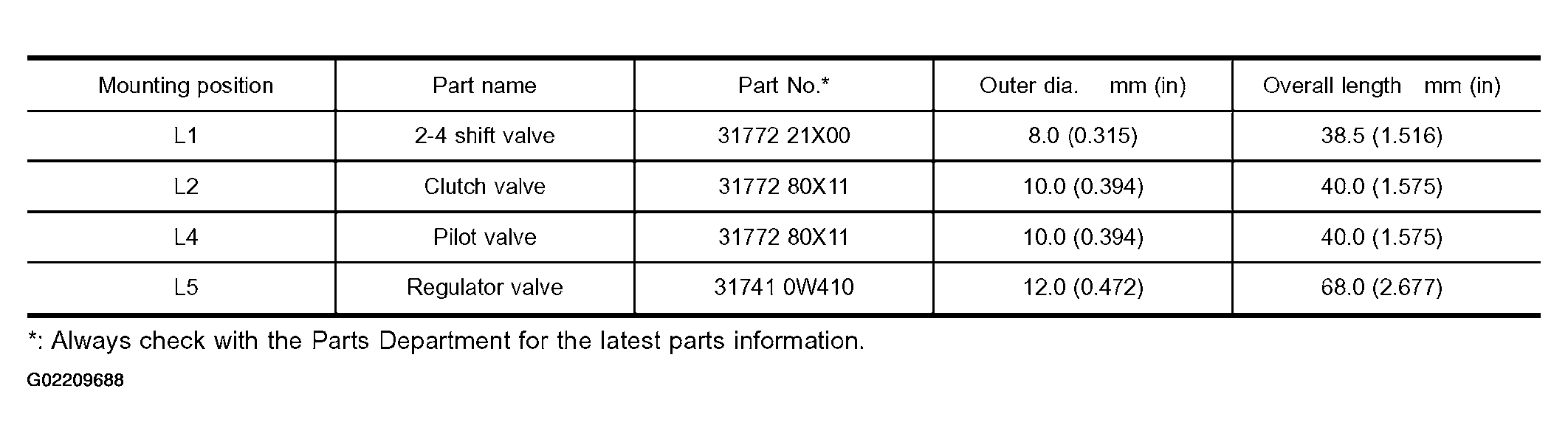

Fig 1: Control Valve Specifications

G02209688

Courtesy of NISSAN MOTOR CO., U.S.A.
