Indications Of 4WD Warning Lamp

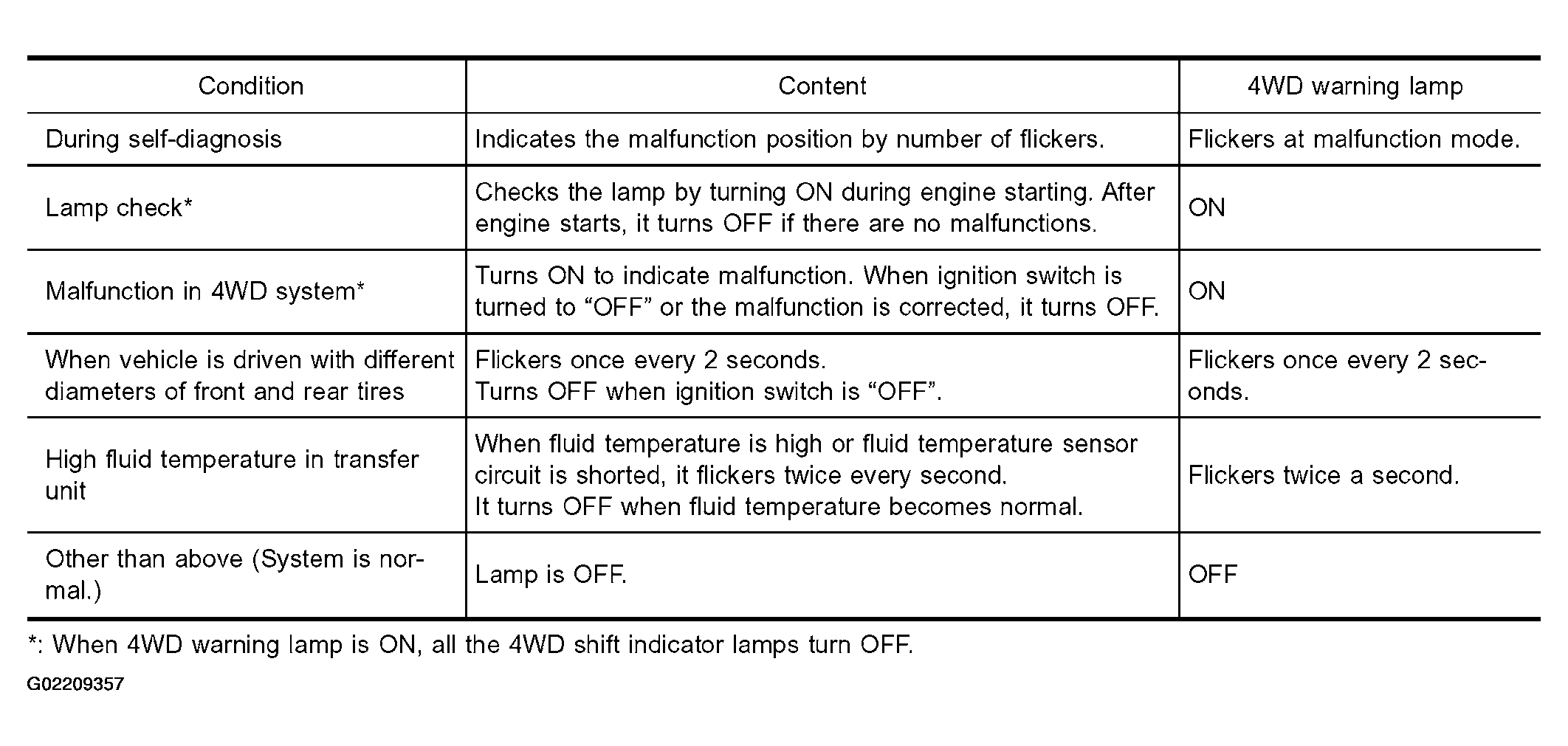

Fig 1: Displaying 4WD Warning Lamp Indications Table
G02209357Courtesy of NISSAN MOTOR CO., U.S.A.
