Engine Performance Harness Connectors

Fig 1: Identifying In-Line Harness Connector M32/F23 Terminals
G99F54812Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Identifying In-Line Harness Connector F22/M33 Terminals
G00103859Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Identifying In-Line Harness Connector E132/E135 Terminals
G96I11500Courtesy of NISSAN MOTOR CO., U.S.A.

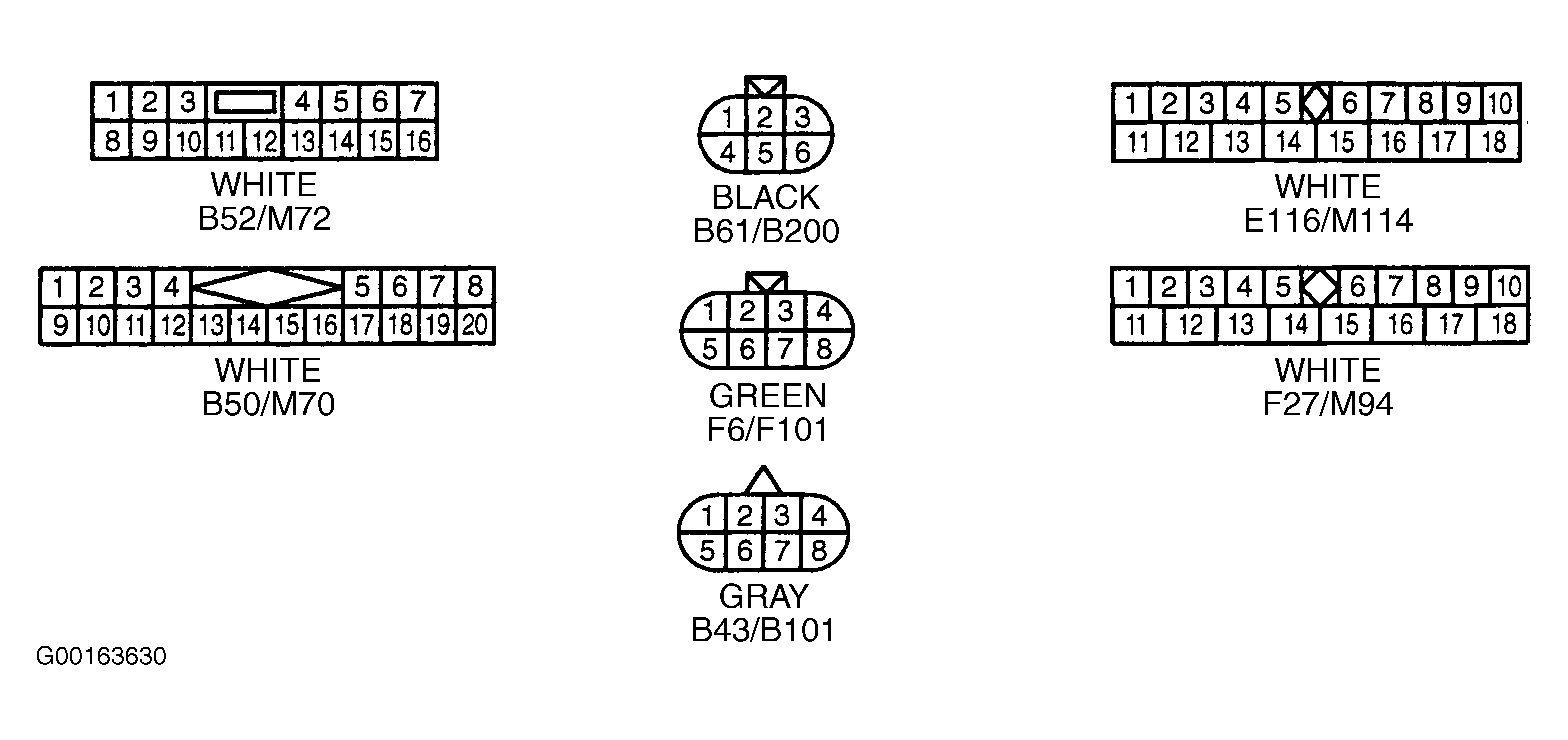

Fig 4: Identifying Various Engine Performance In-Line Harness Connectors
G00163630Courtesy of NISSAN MOTOR CO., U.S.A.

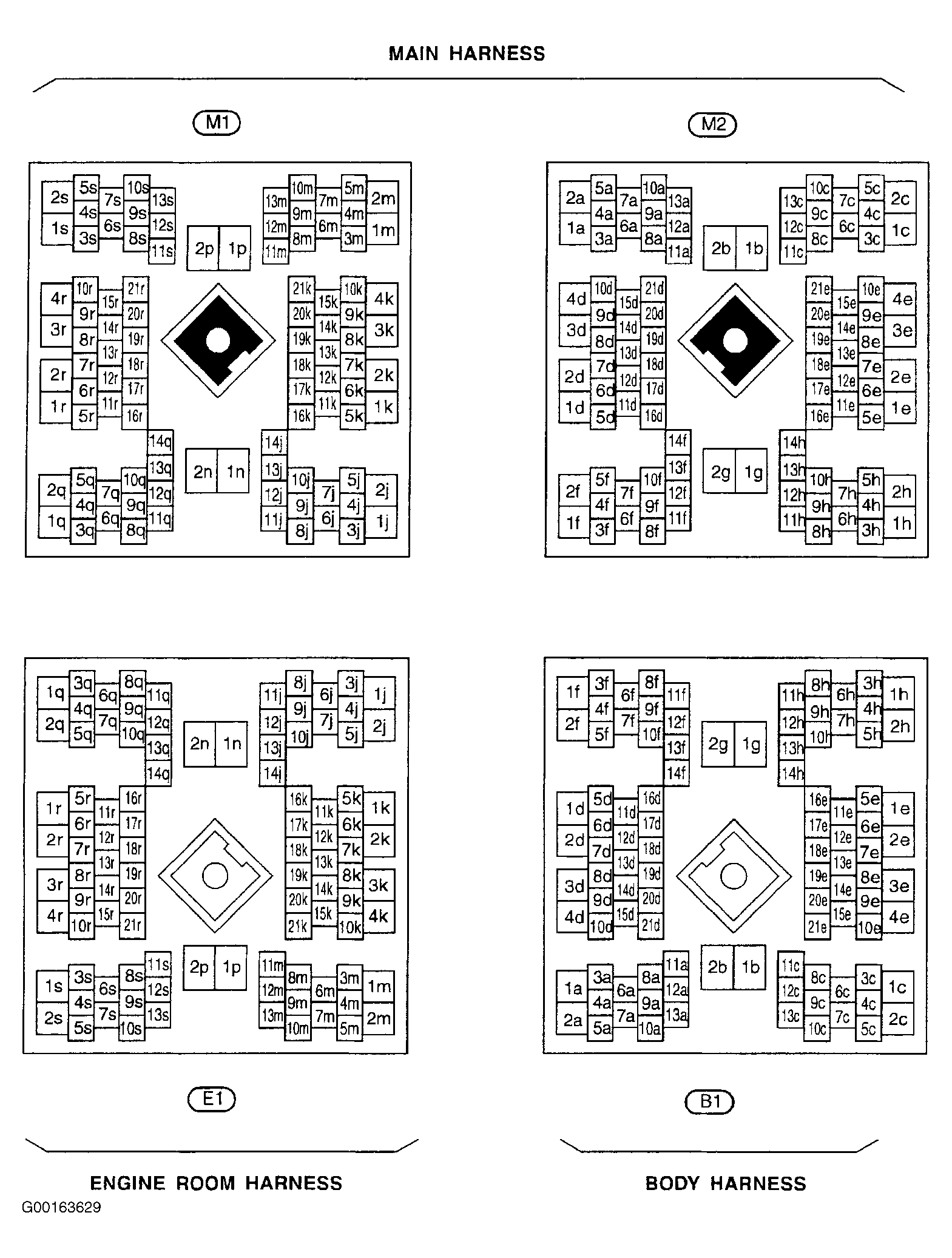

Fig 5: Identifying Main Super Multiple Junction Harness Connector Terminals
G00163629Courtesy of NISSAN MOTOR CO., U.S.A.
