ASCD Steering Switch Check

CHECK ASCD STEERING SWITCH CIRCUIT FOR ASCD CONTROL UNIT
Check voltage between ASCD control unit harness connector terminals and ground.

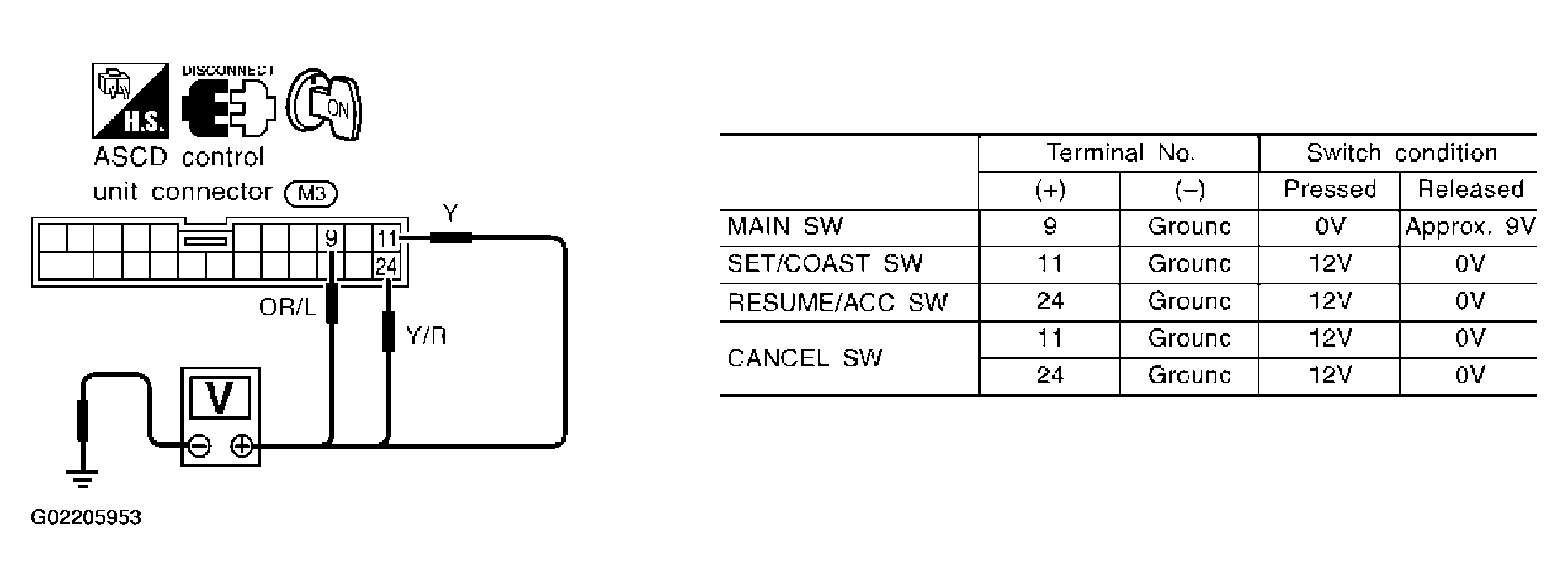

Fig 1: Checking Voltage Between ASCD Control Unit Harness Connector Terminals And Ground (ASCD Steering Switch)
Courtesy of NISSAN MOTOR CO., U.S.A.

Refer to wiring diagram in WIRING DIAGRAM - ASCD - .

OK or NG
1. OK : ASCD steering switch is OK.
2. NG : GO TO 2.
CHECK POWER SUPPLY FOR ASCD STEERING SWITCH
Does horn work?
1. Yes: GO TO 3.
2. No: Check the following.
  - 7.5A fuse (No. 52, located in fuse and fusible link box)
  - Horn relay
  - Horn circuit
CHECK ASCD STEERING SWITCH
1. Disconnect ASCD steering switch.
2. Check continuity between ASCD steering switch harness connector Z30 terminals by pushing each switch.

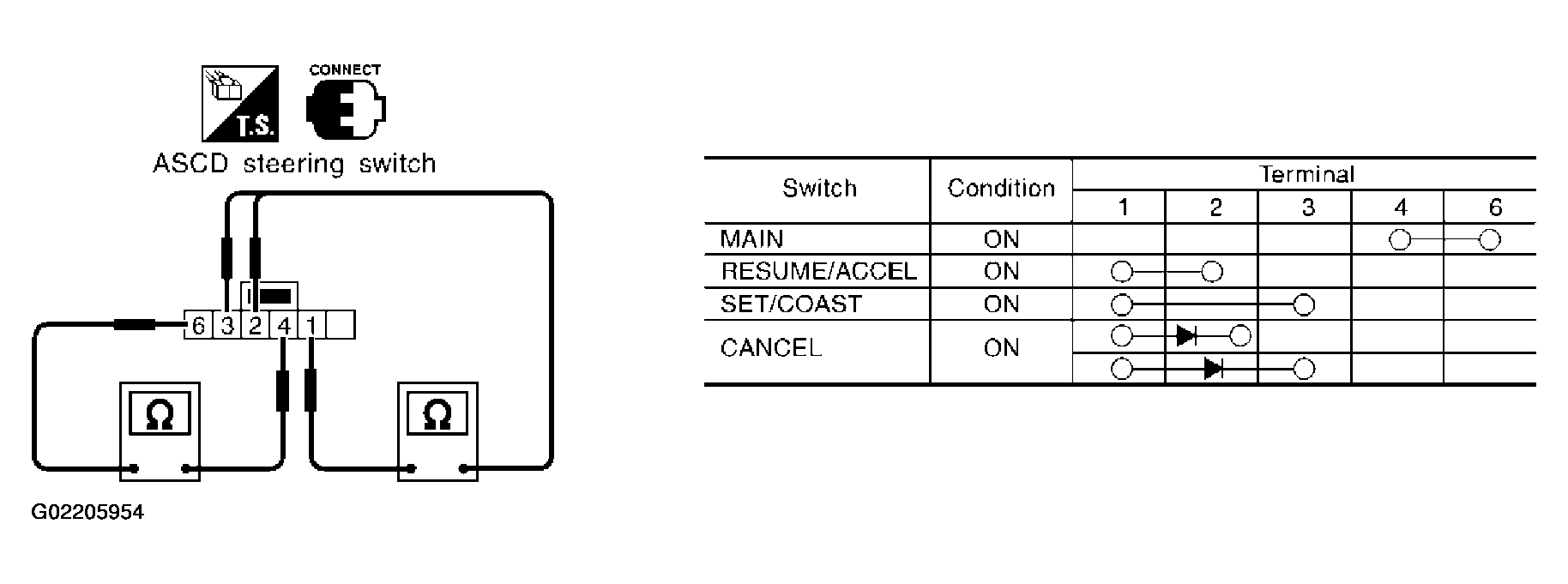

  Fig 2: Checking Continuity Between ASCD Steering Switch Harness Connector Z30 Terminals (ASCD Steering Switch)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Refer to wiring diagram in WIRING DIAGRAM - ASCD - .

OK or NG
1. OK : Check harness for open or short between ASCD steering switch and ASCD control unit.
2. NG : Replace ASCD steering switch.
