Pressure Relief Valve

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor. when the pressure of refrigerant in the system increases to an abnormal level [more than 3,727 kPa (38 kg/cm2 , 540 psi)], the release port on the pressure relief valve automatically opens and releases refrigerant into the atmosphere.

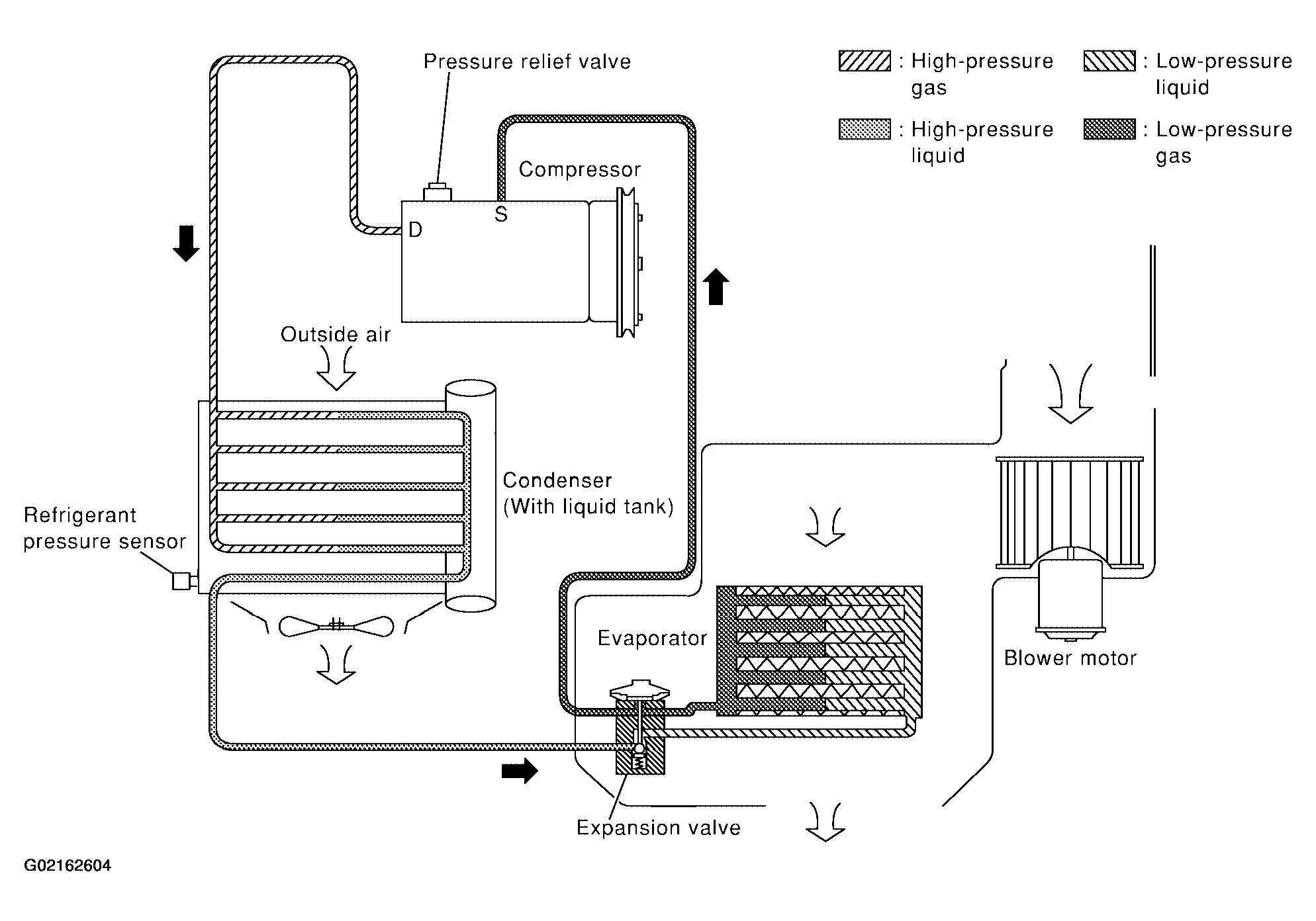

Fig 1: Identifying/Locating Refrigerant System Pressure Relief Valve
G02162604Courtesy of NISSAN MOTOR CO., U.S.A.
