Trouble Diagnoses with Battery/Starting/Charging System Tester
>>
Work Flow
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Work Flow

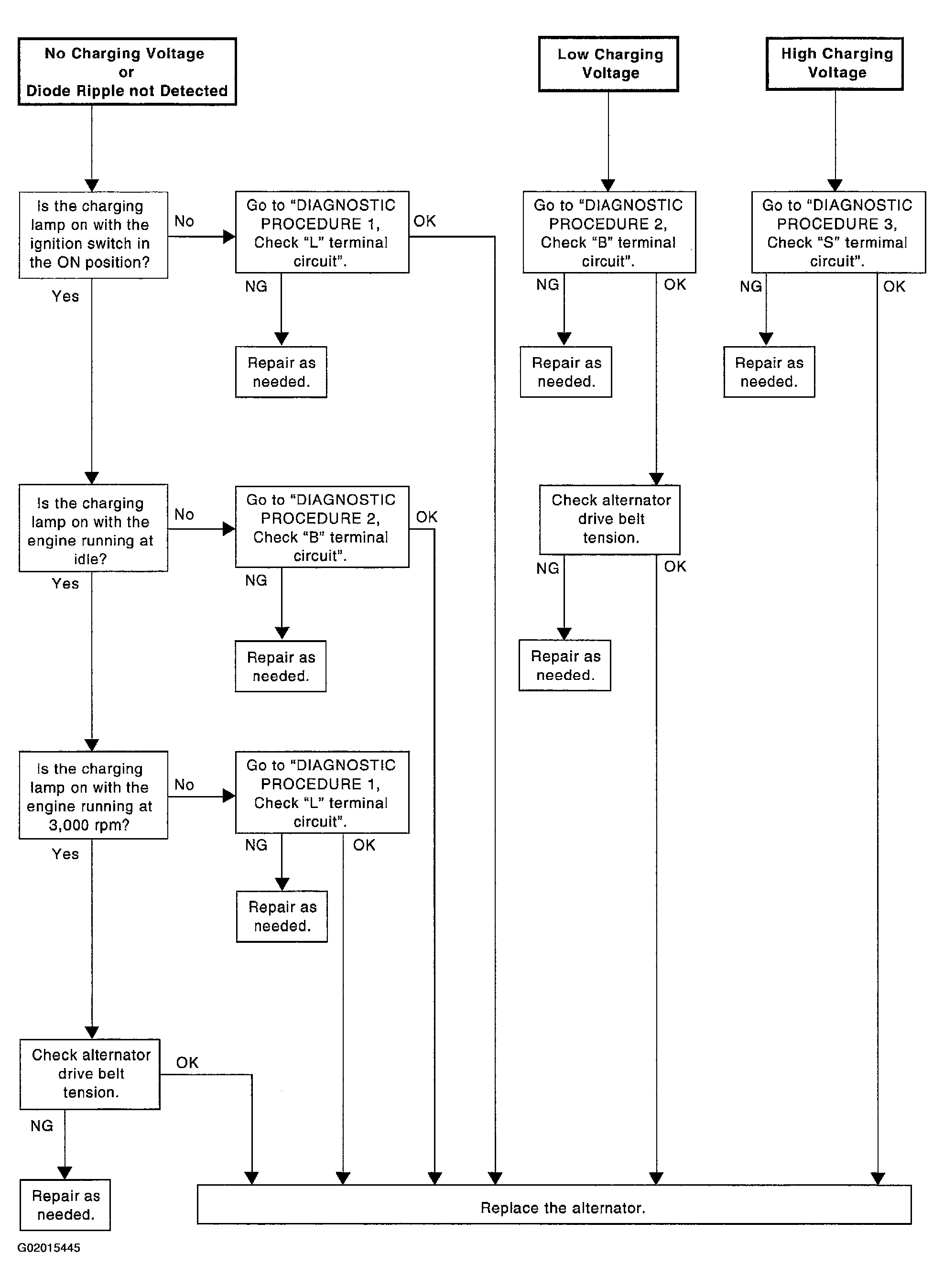

Fig 1: Charging System Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
