Front Wheel Turning Angle

Turning angle is set by stroke length of steering gear rack and cannot be adjusted.

1. Set wheels in straight-ahead position. Then move vehicle forward until front wheels rest on turning radius gauge properly.
2. Rotate steering wheel all the way right and left; measure turning angle.

Do not hold the steering wheel on full lock for more than 15 seconds.

Wheel turning angle (Full turn):

Refer to  SPECIFICATIONS  .

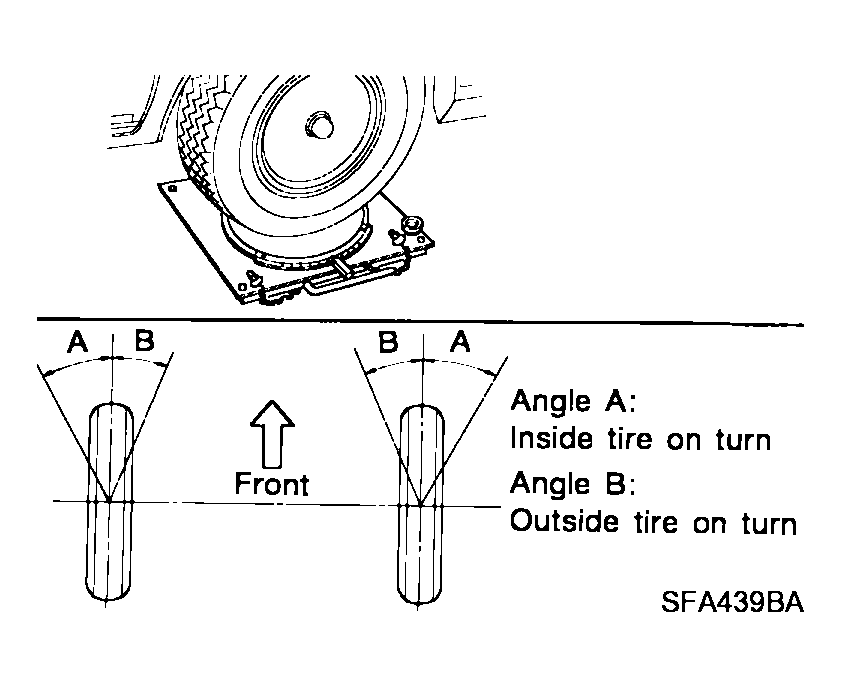

Fig 1: Measuring Turning Angle

Courtesy of NISSAN MOTOR CO., U.S.A.
