Turbine Revolution Sensor

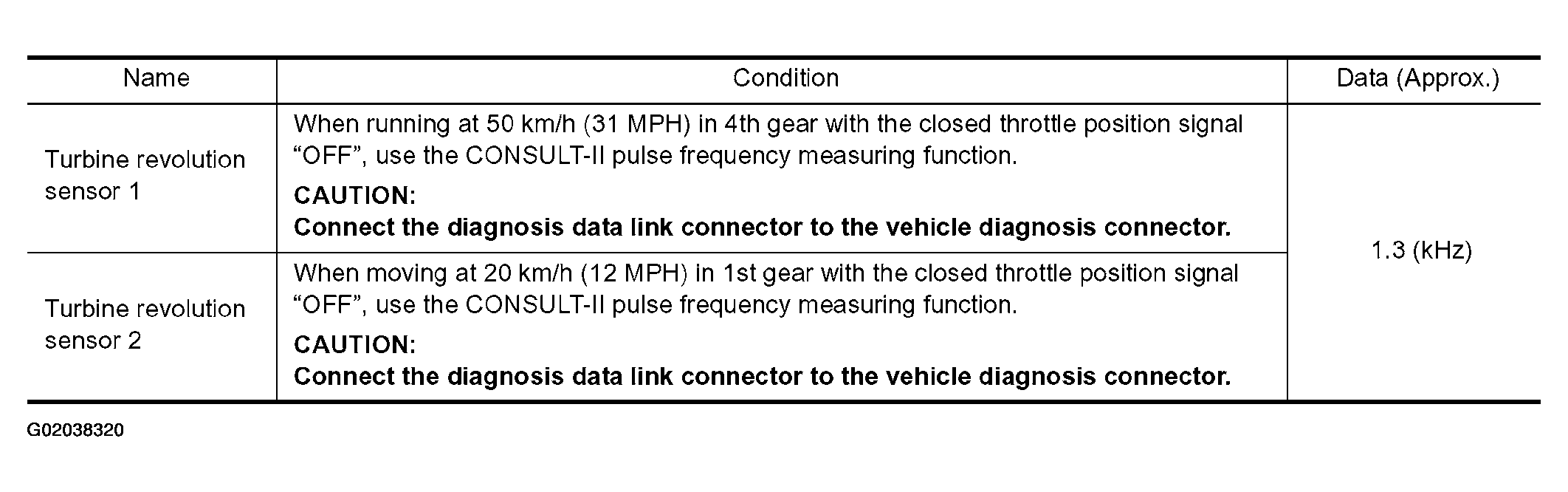

Fig 1: Identifying Turbine Revolution Sensor Table
Courtesy of NISSAN MOTOR CO., U.S.A.
