Direct Clutch: Components

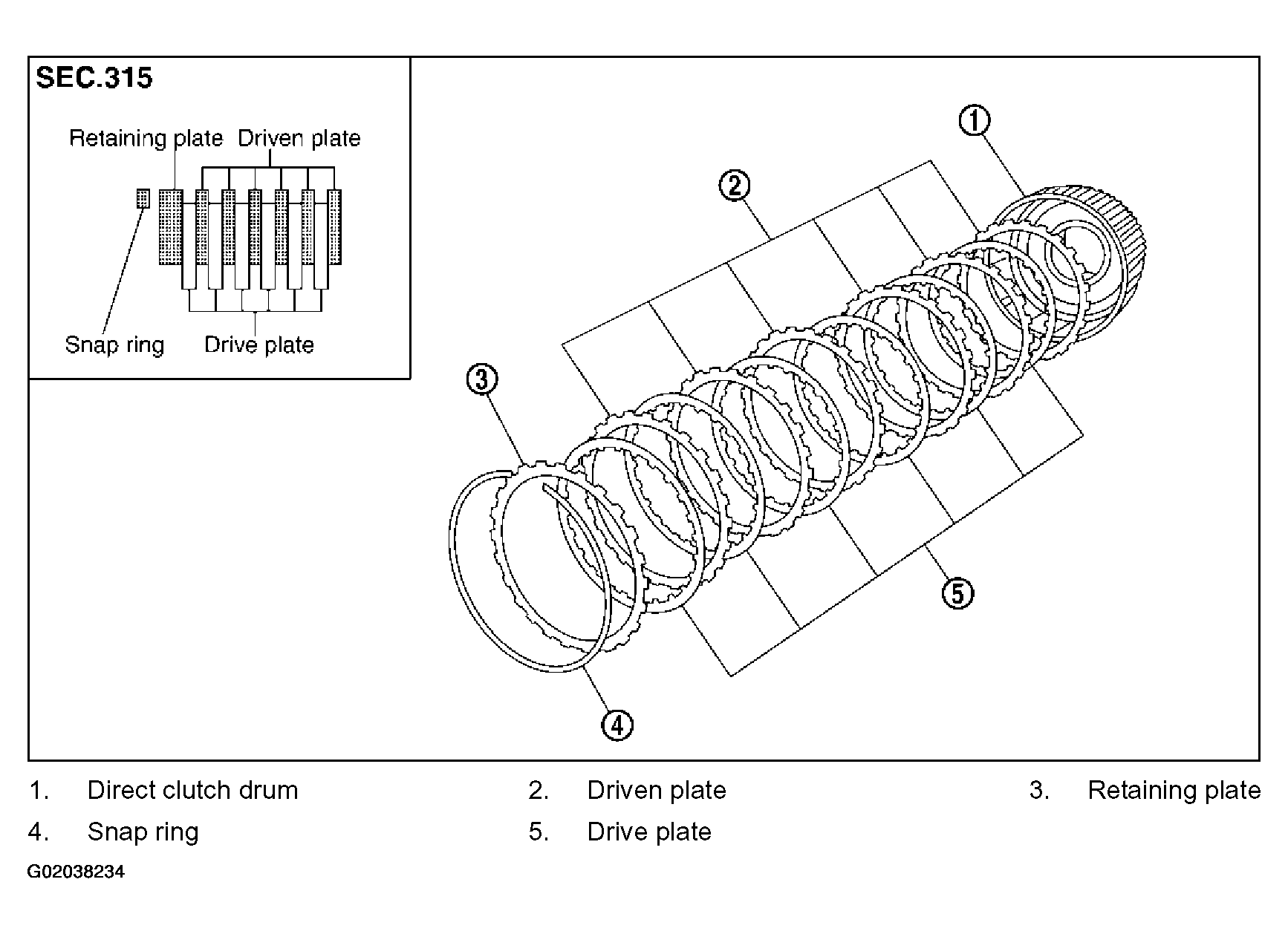

Fig 1: Repairing Direct Clutch Components

G02038234

Courtesy of NISSAN MOTOR CO., U.S.A.
