Clutch And Band Chart

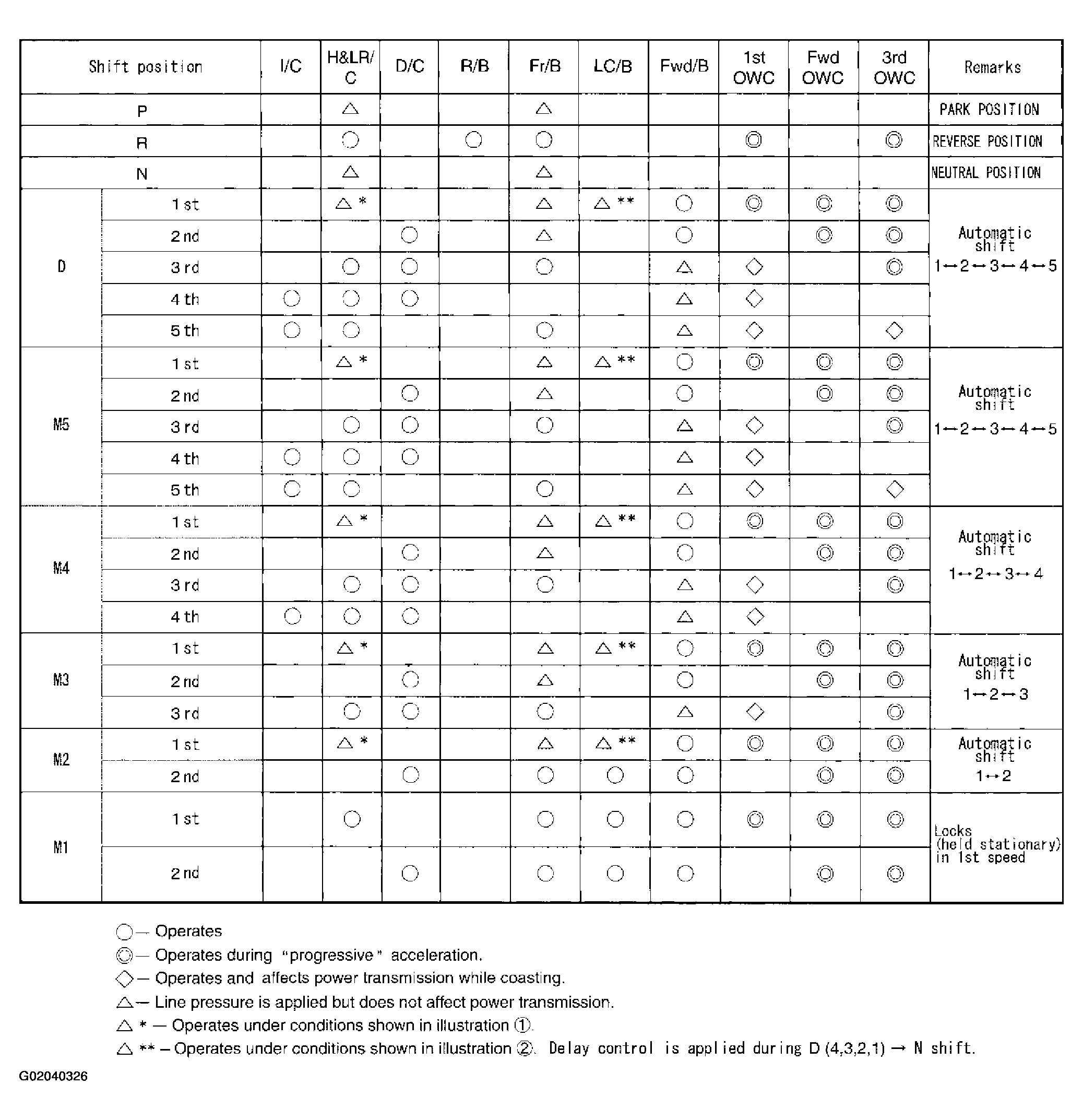

Fig 1: Clutch And Band Chart
G02040326Courtesy of NISSAN MOTOR CO., U.S.A.

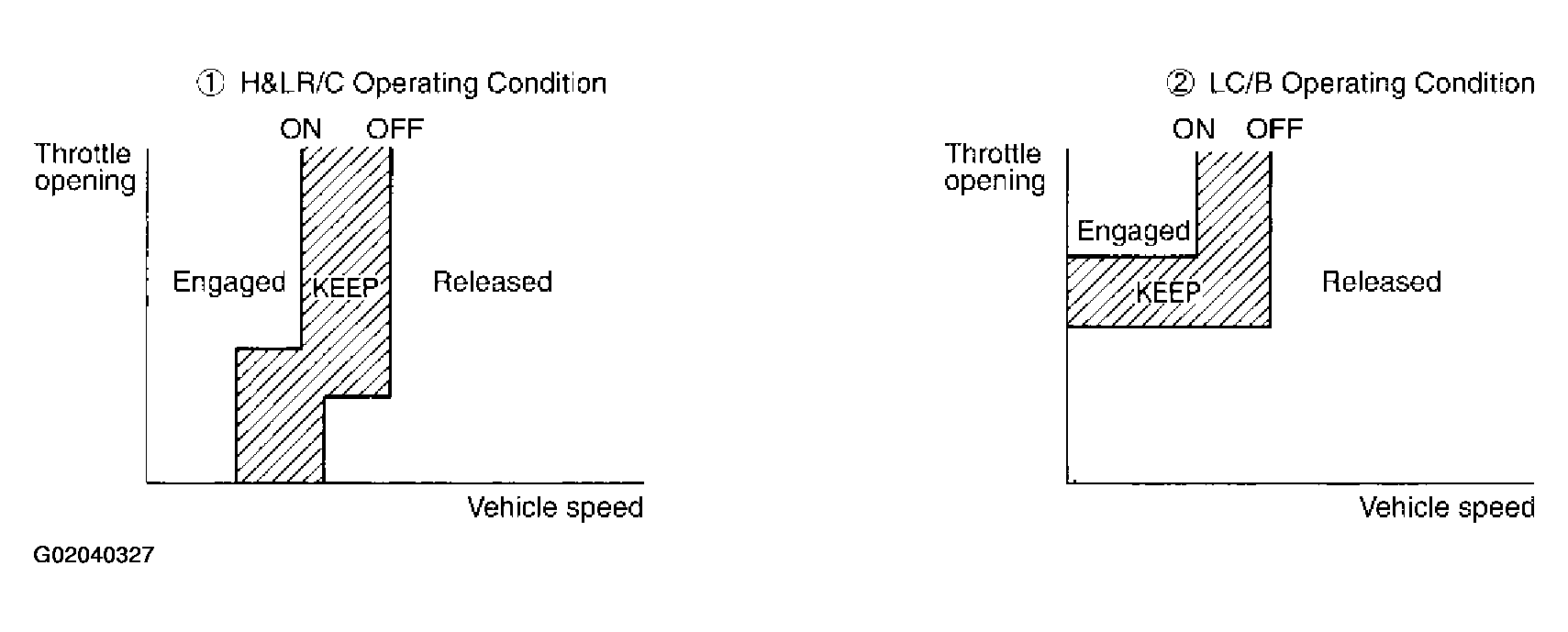

Fig 2: High And Low Reverse Clutch And Low Cost Brake Operation Condition Diagram
G02040327Courtesy of NISSAN MOTOR CO., U.S.A.
