Power Supply Routing Circuit: Schematic
WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
For detailed ground distribution, refer to
, "GROUND DISTRIBUTION
".

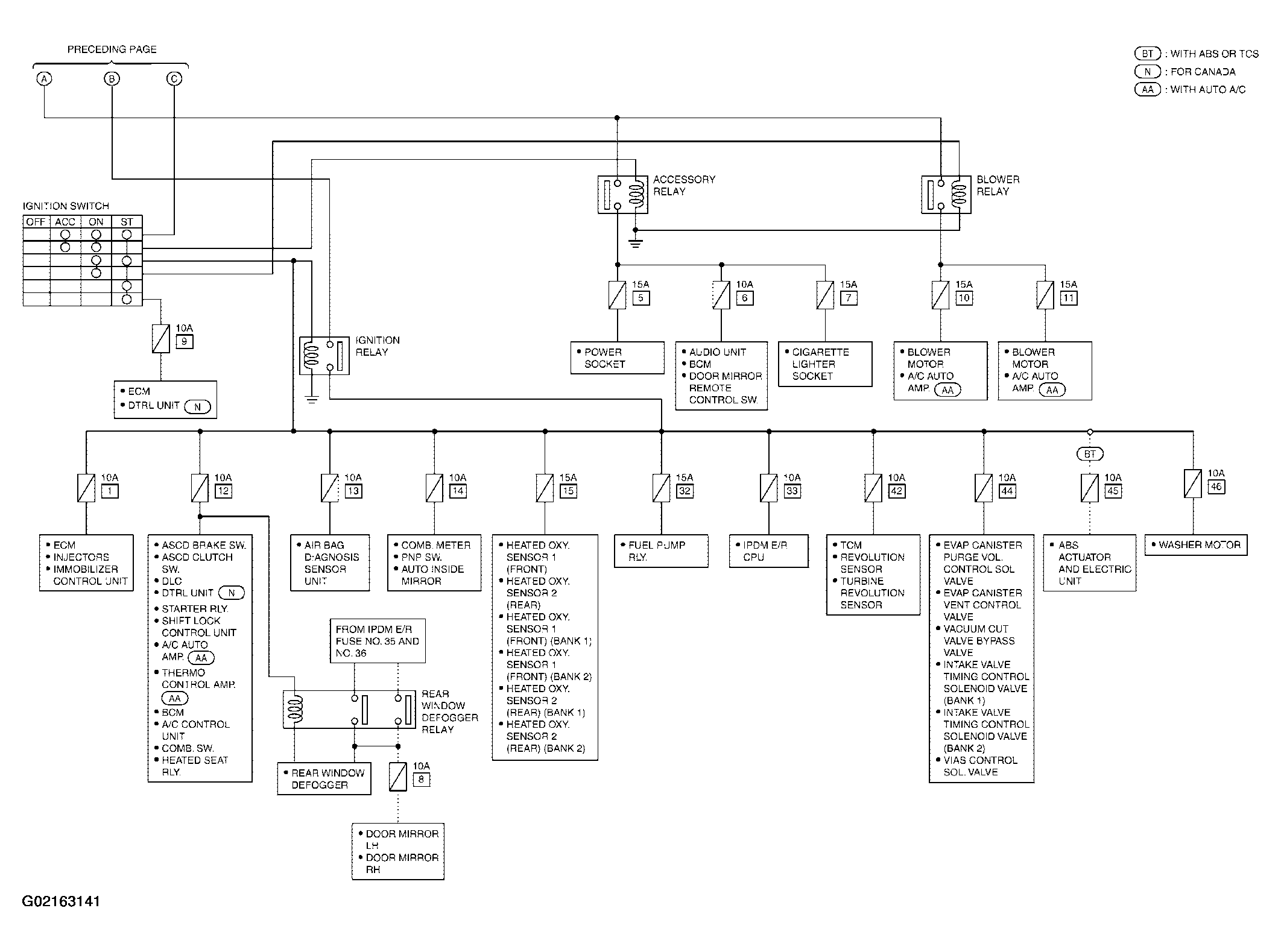

Fig 1: Power Supply Routing Circuit Schematic (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

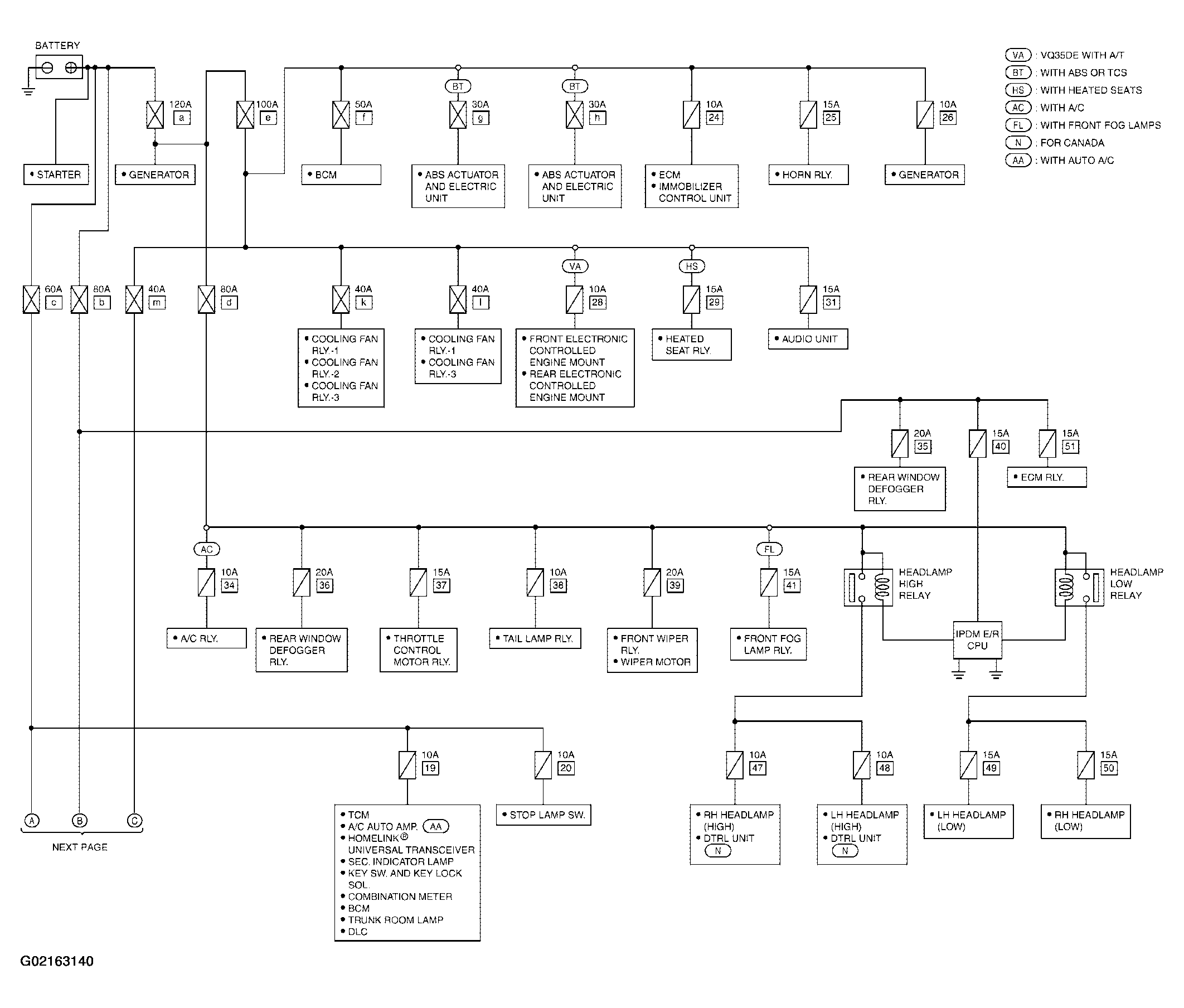

Fig 2: Power Supply Routing Circuit Schematic (2 Of 2)
