VDC/TCS/Abs Actuator: Notes

Disconnect actuator connectors. Check continuity and resistance value between any pair of terminals on the actuator.

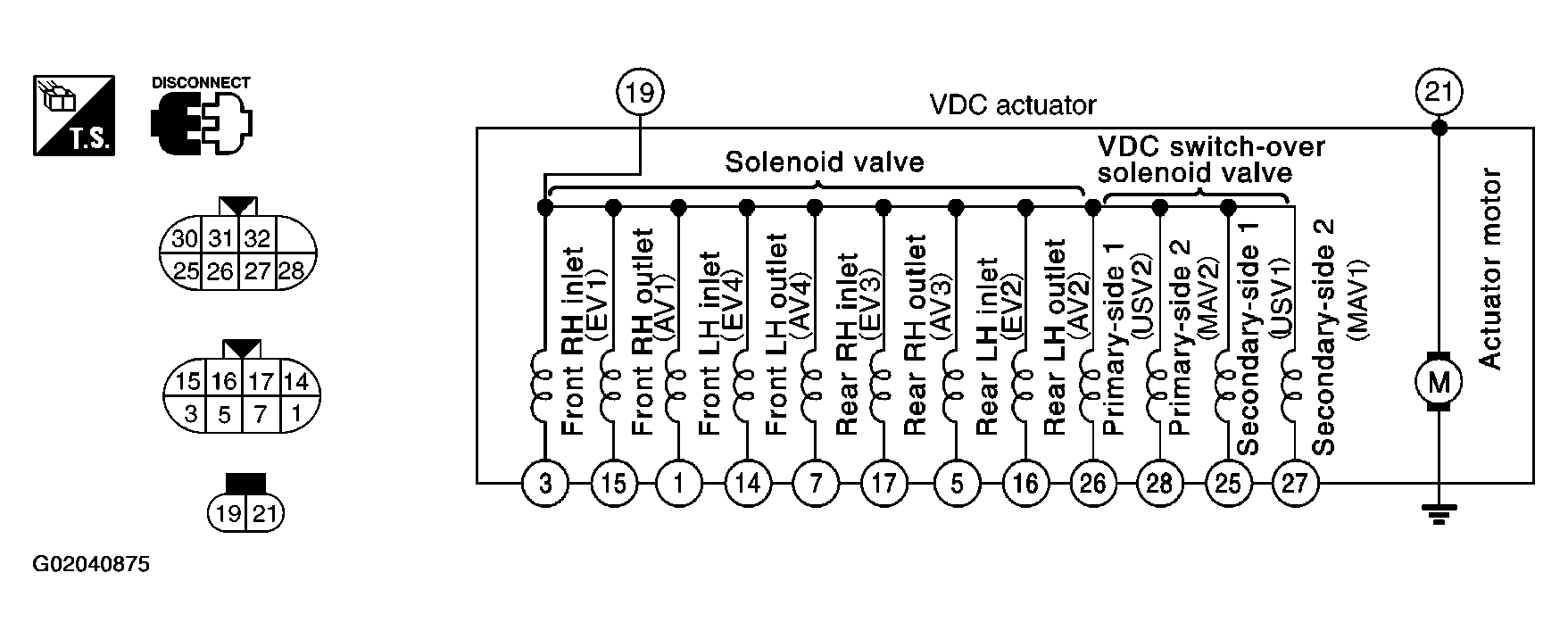

Fig 1: Check Continuity And Resistance Value - VDC/TCS/ABS Actuator

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Make sure actuator motor is correctly grounded.

Continuity, resistance

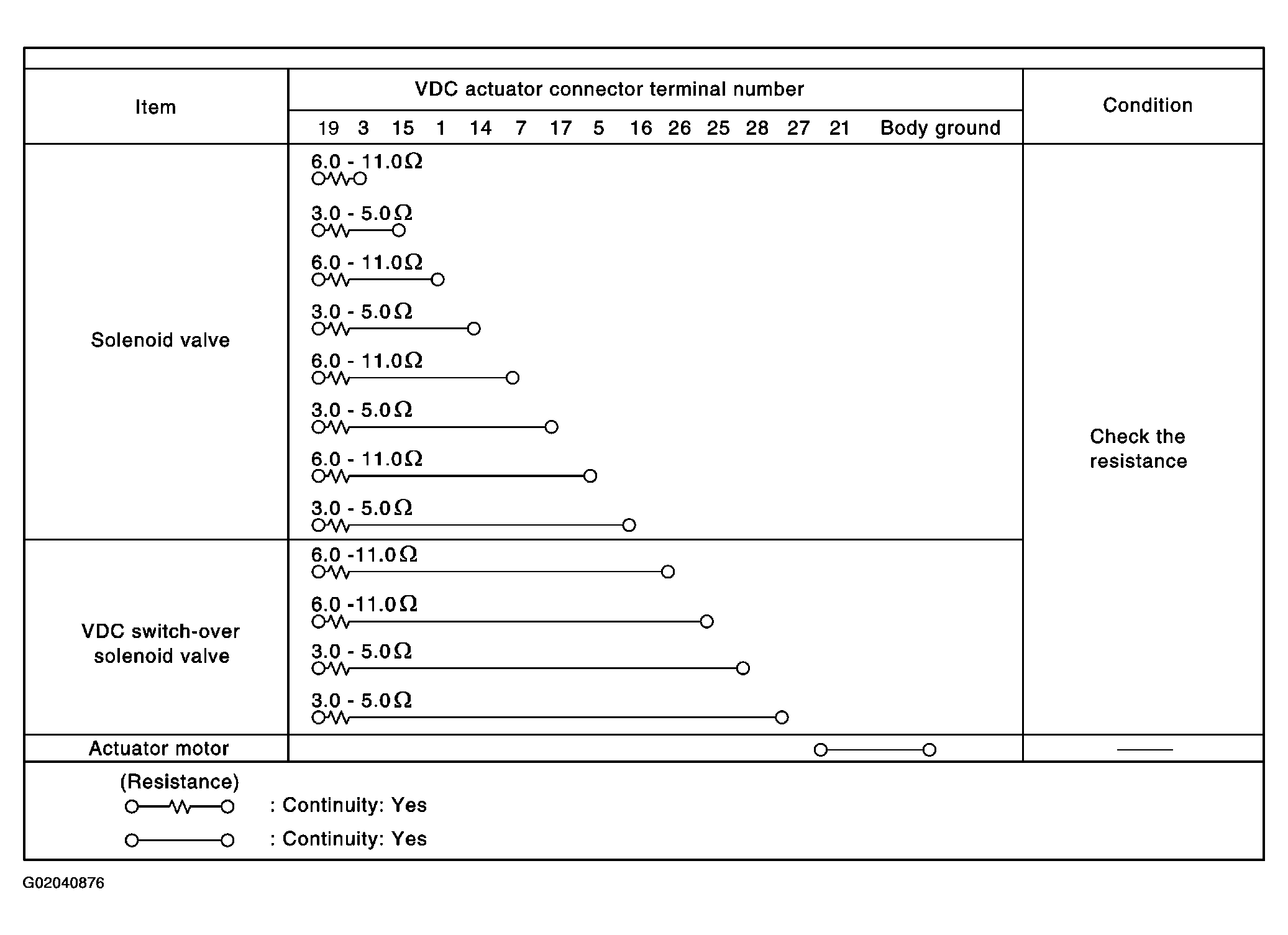

Fig 2: Continuity, Resistance - VDC/TCS/ABS Actuator

Courtesy of NISSAN MOTOR CO., U.S.A.
