VDC OFF Indicator Lamp

Touch "ON" and "OFF" on the screen. Check that VDC OFF indicator lamp operates as shown in table below.

Fig 1: VDC Indicator Lamp Operation Table

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: If "OFF" is touched on screen during active test, VDC OFF indicator lamp, SLIP indicator lamp, and ABS warning lamp all turn ON for a moment. This is normal.

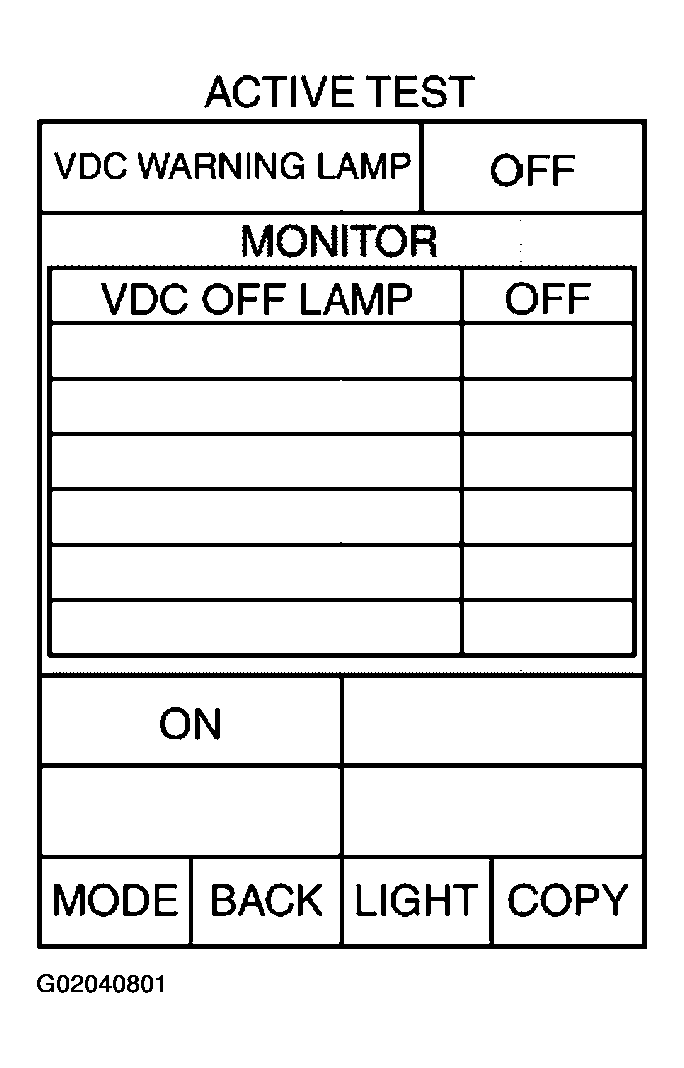

Fig 2: Consult II VDC OFF LAMP Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.
