Data Monitor (Signal Monitor)

Displays status of the vehicle signal input to the AV and NAVI control unit. (Refer to "CONFIRMATION/ADJUSTMENT MODE " for operation conditions for the connections to be indicated.)

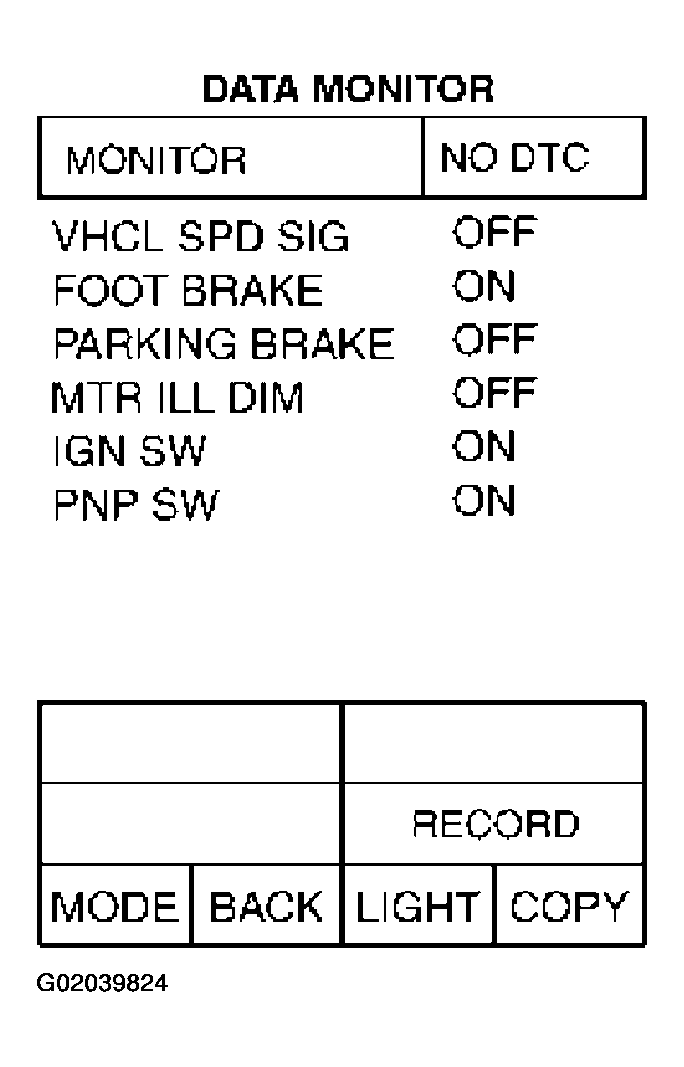

Fig 1: Data Monitor (Signal Monitor)
Courtesy of NISSAN MOTOR CO., U.S.A.
For each signal, a comparison of actual operating status and the status recognized by the system can be checked.

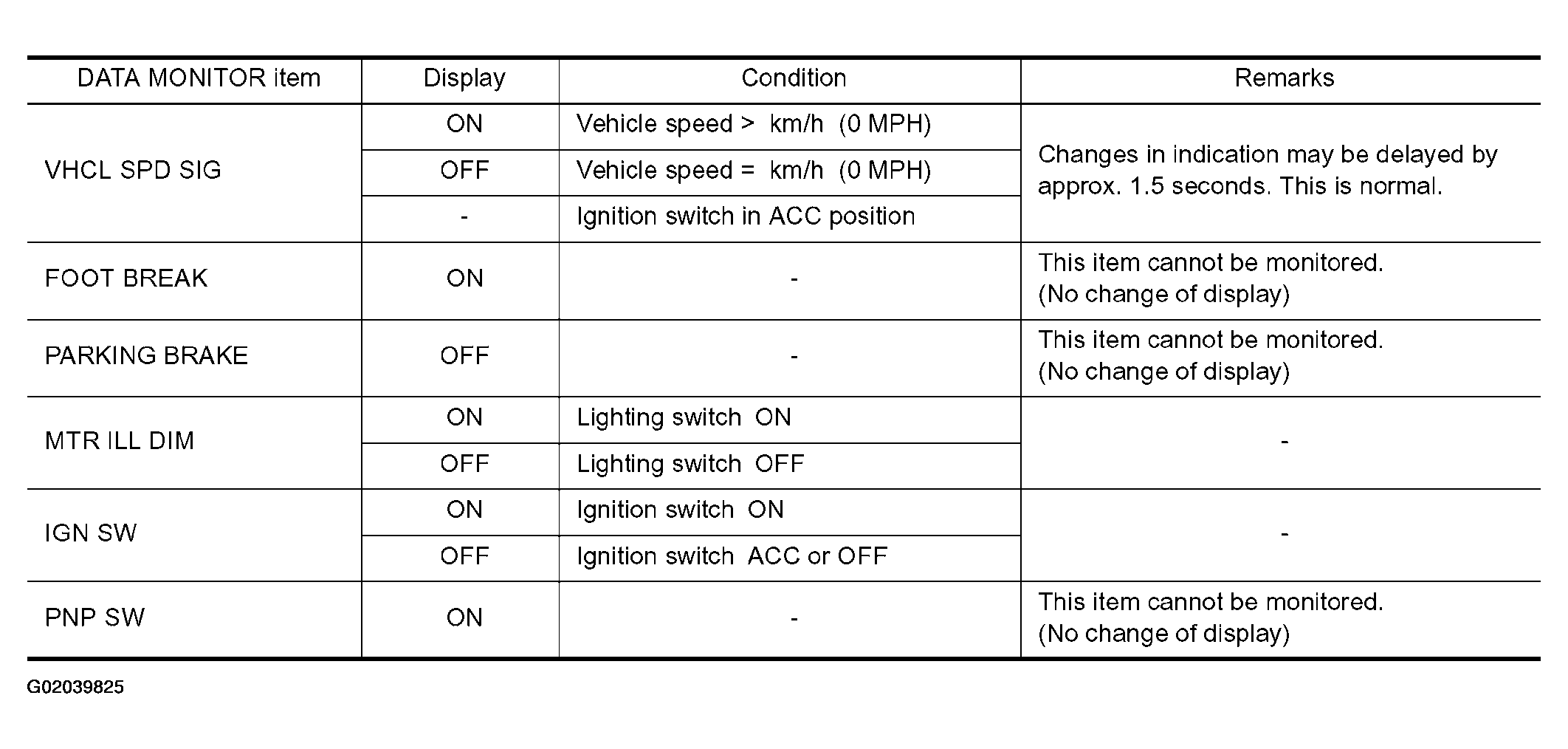

Fig 2: Data Monitor Item Condition Table
Courtesy of NISSAN MOTOR CO., U.S.A.
