Wiring Diagram & Specification Data

For wiring diagram and specification data, see Fig 1 and Fig 2 .

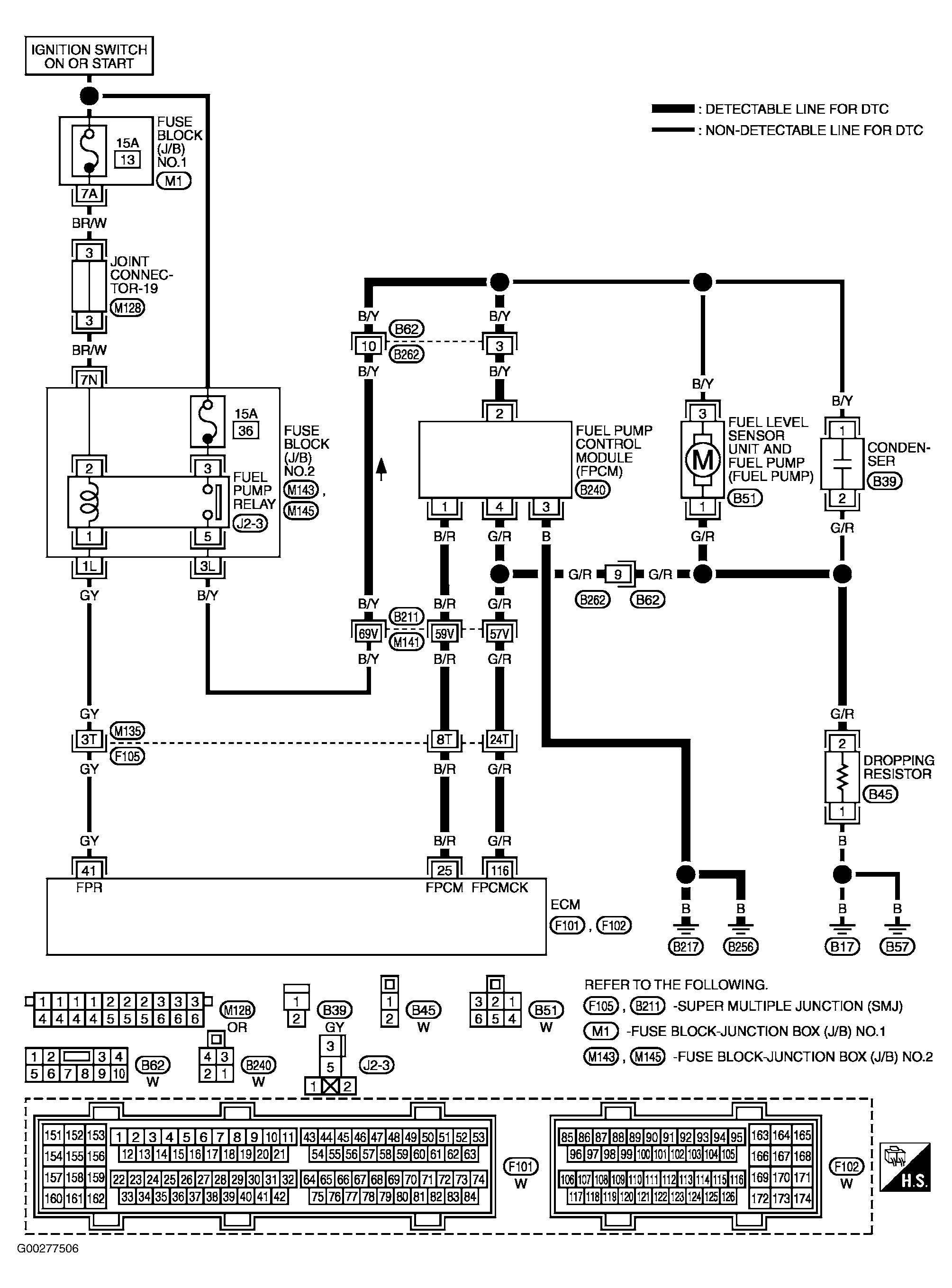

Fig 1: Wiring Diagram
G00277506Courtesy of NISSAN MOTOR CO., U.S.A.

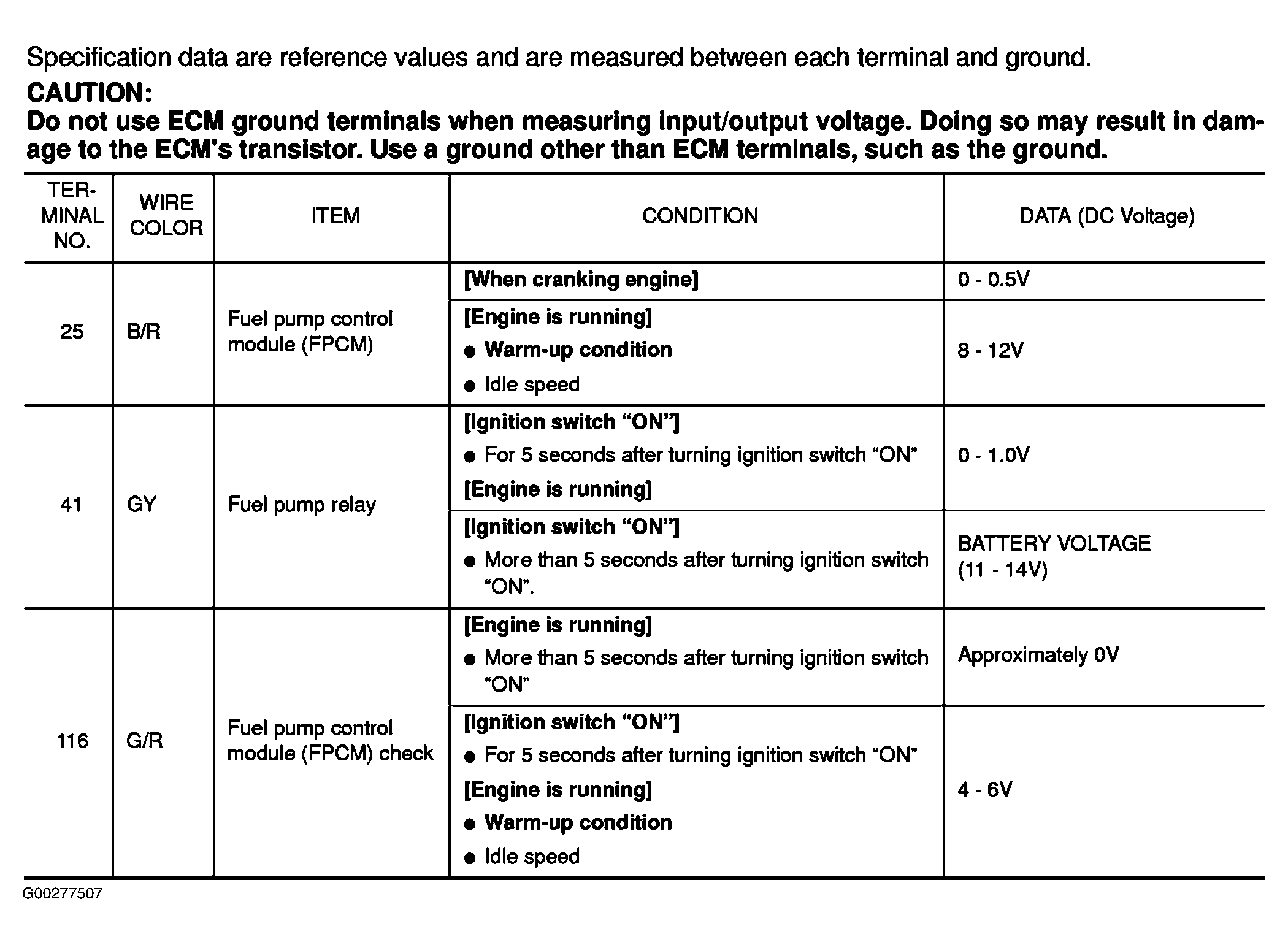

Fig 2: Specification Data
G00277507Courtesy of NISSAN MOTOR CO., U.S.A.
