DTC P0460: Fuel Level Sensor Function (Slosh): Wiring Diagram

For wiring diagram, see Fig 1 .

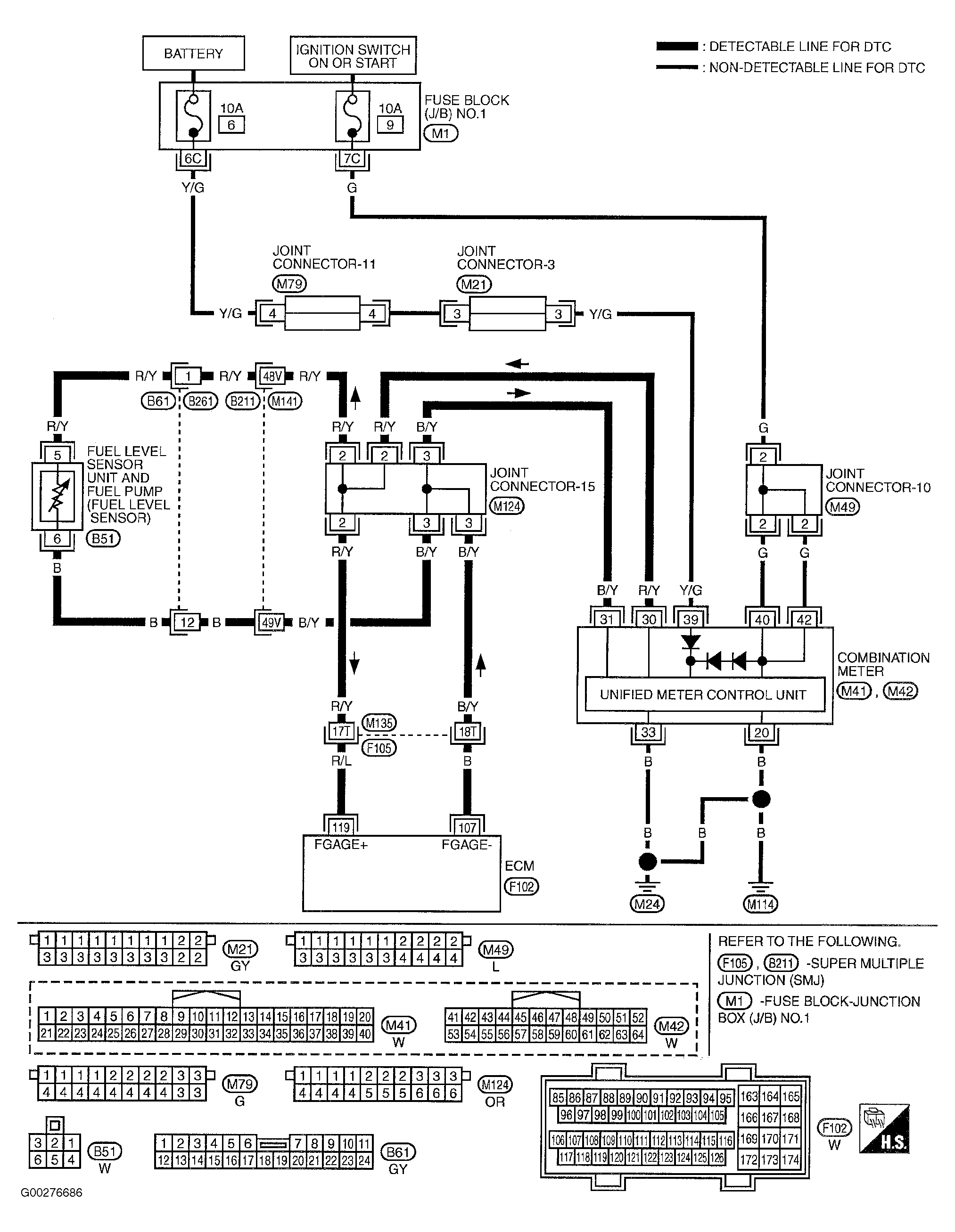

Fig 1: Wiring Diagram
G00276686Courtesy of NISSAN MOTOR CO., U.S.A.
