DTC Confirmation Procedure

For DTC confirmation procedure, see Fig 1 .

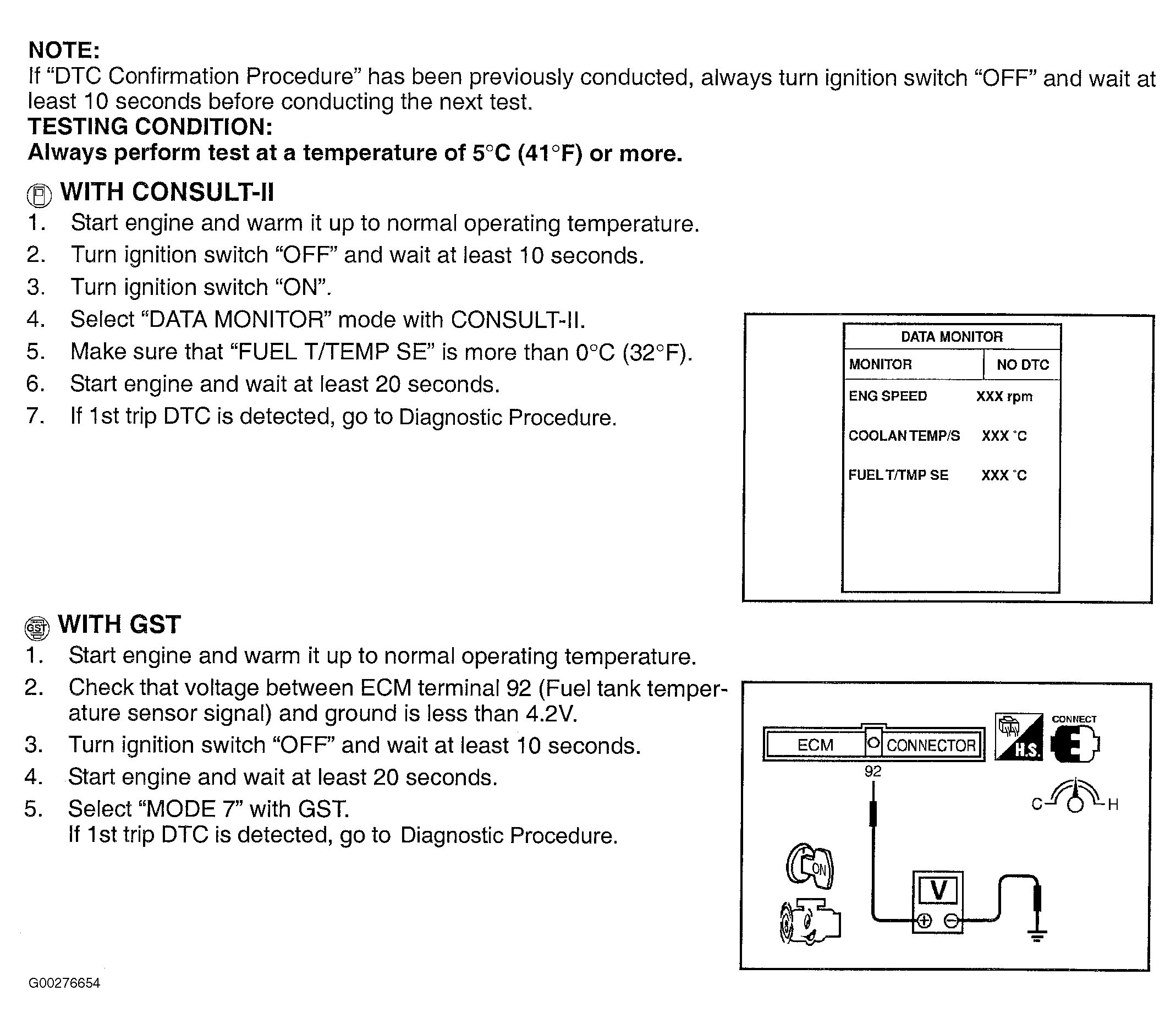

Fig 1: DTC Confirmation Procedure
G00276654Courtesy of NISSAN MOTOR CO., U.S.A.
