DTC P0101: Mass Airflow Sensor
>>
Overall Function Check Procedure For Malfunction "B"
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Overall Function Check Procedure For Malfunction "B"
For overall function check procedure for malfunction "B", see
Fig 1
.

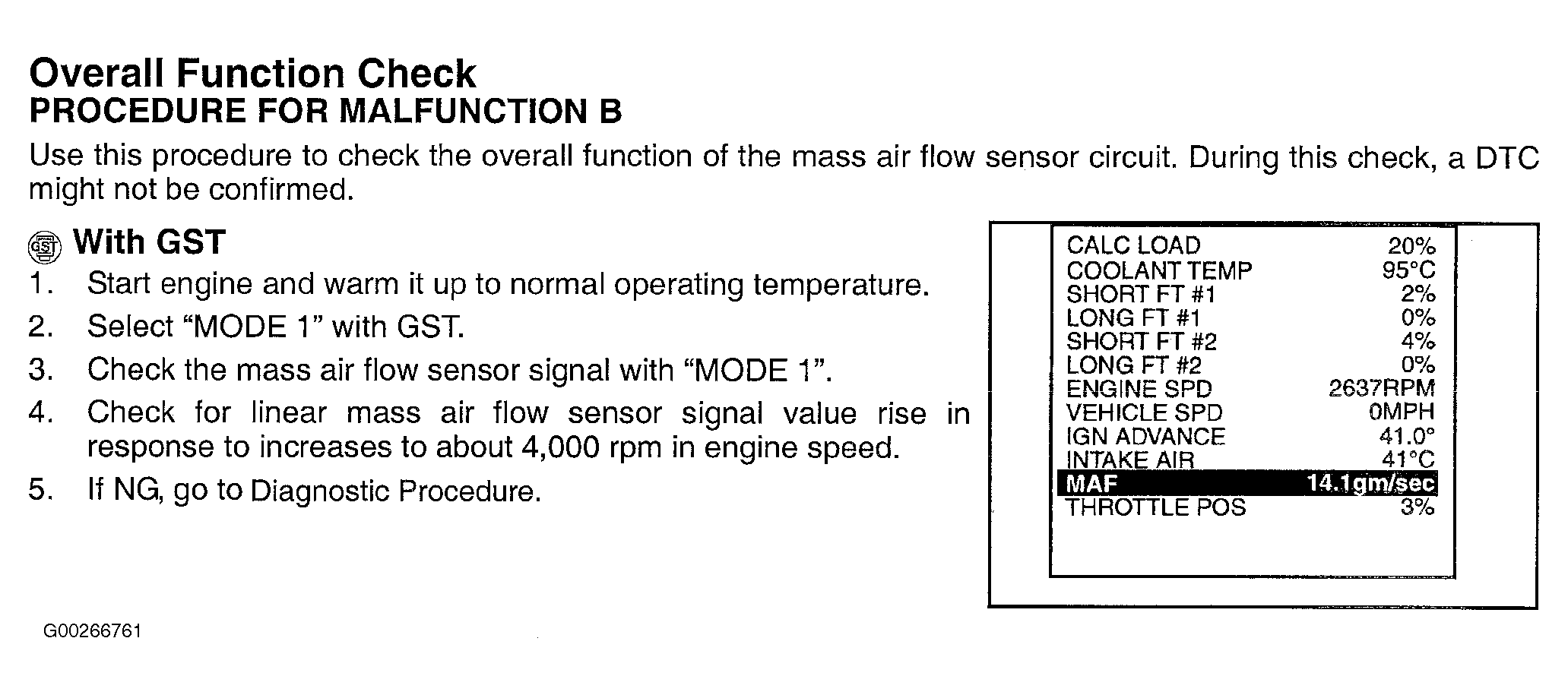

Fig 1: Overall Function Check Procedure For Malfunction "B"
Courtesy of NISSAN MOTOR CO., U.S.A.
