Power Window System
>>
Terminals and Reference Value for Passenger, Rear LH, RH Door Control Unit
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Terminals and Reference Value for Passenger, Rear LH, RH Door Control Unit

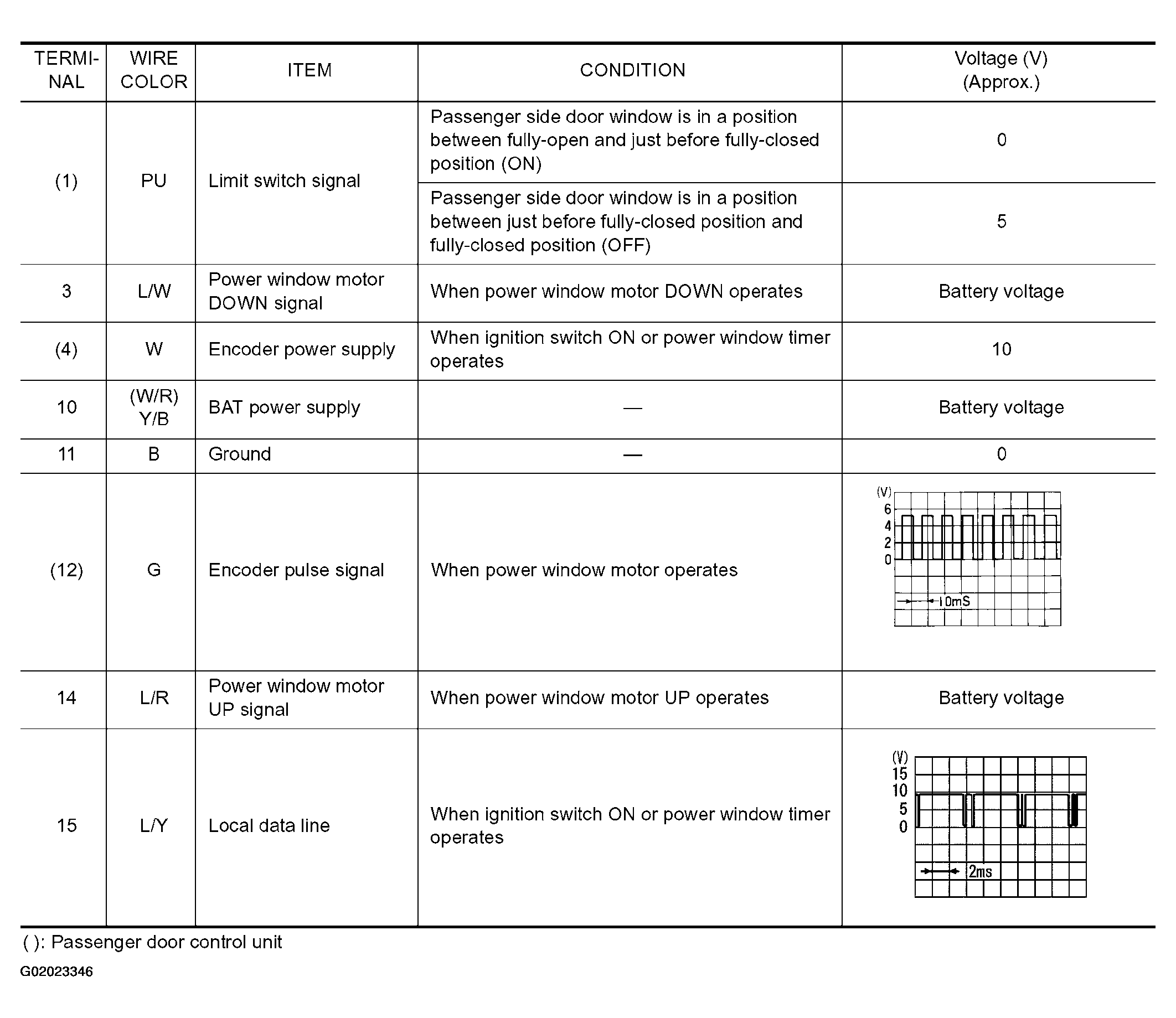

Fig 1: Terminals And Reference Value Chart (Passenger, Rear LH, RH Door Control Unit)
Courtesy of NISSAN MOTOR CO., U.S.A.
