Reverse Clutch: Components

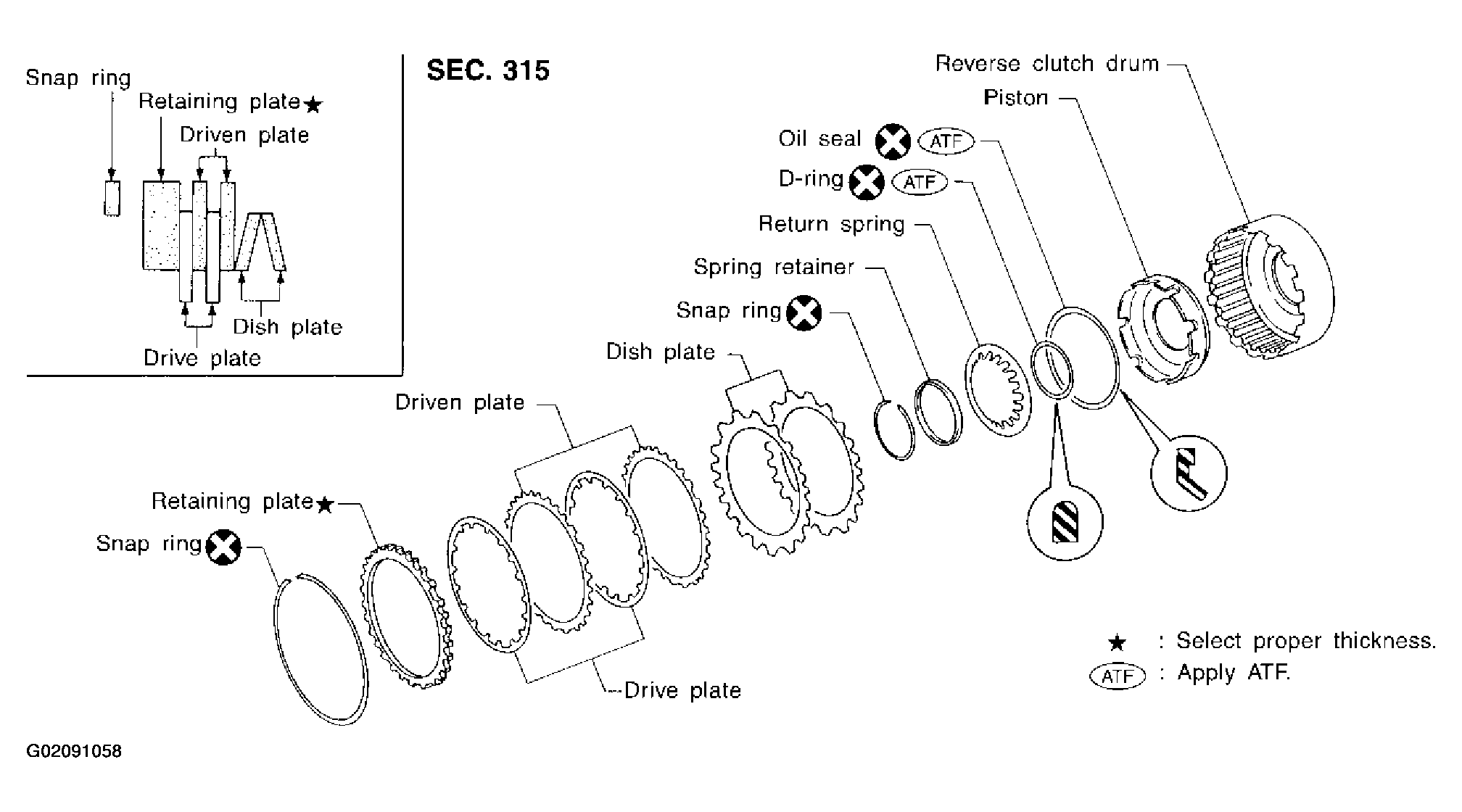

Fig 1: Exploded View Of Reverse Clutch Components

G02091058

Courtesy of NISSAN MOTOR CO., U.S.A.
